BGA7P220 Datasheet - Infineon

BGA7P220 Pre Driver

The product is a stand-alone pre-driver in package. The pre-driver is a two-stage amplifier designed to be used in the 5G Tx line-up for base station applications as the pre-driver for the Doherty power amplifier. It has been designed in the INFINEON SiGe technology. The input is 100Ω di erential, the.

BGA7P220 Features

* Operation frequency range: 2300 to 2700MHz

* Gain: 34.4dB

* Output P1dB: 27.5dBm

* 100Ω di erential input

* 3.3V supply voltage

* TSNP-16 leadless package (3.0 x 3.0 mm2)

* SiGe Technology Potential Application

* 5G m-MIMO

* M

BGA7P220 Datasheet (371.62 KB)

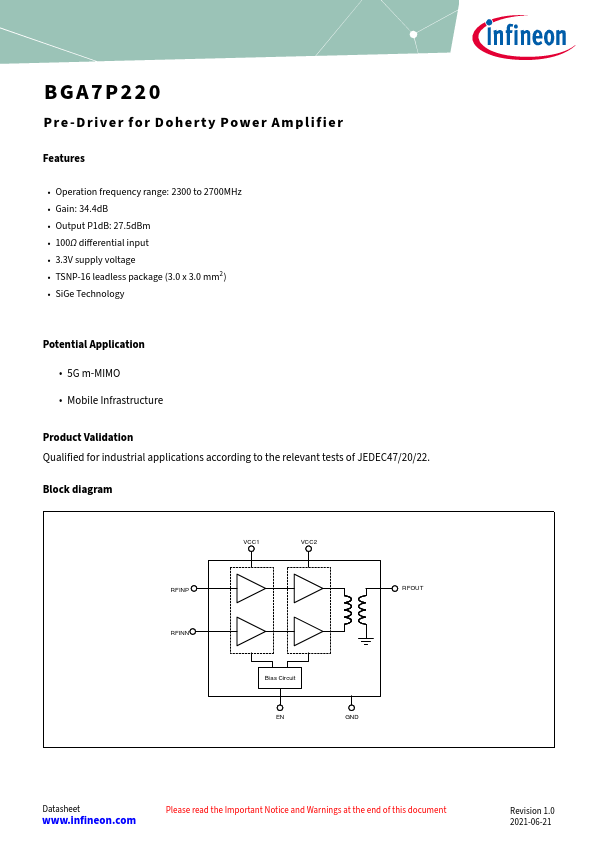

Preview of BGA7P220 PDF

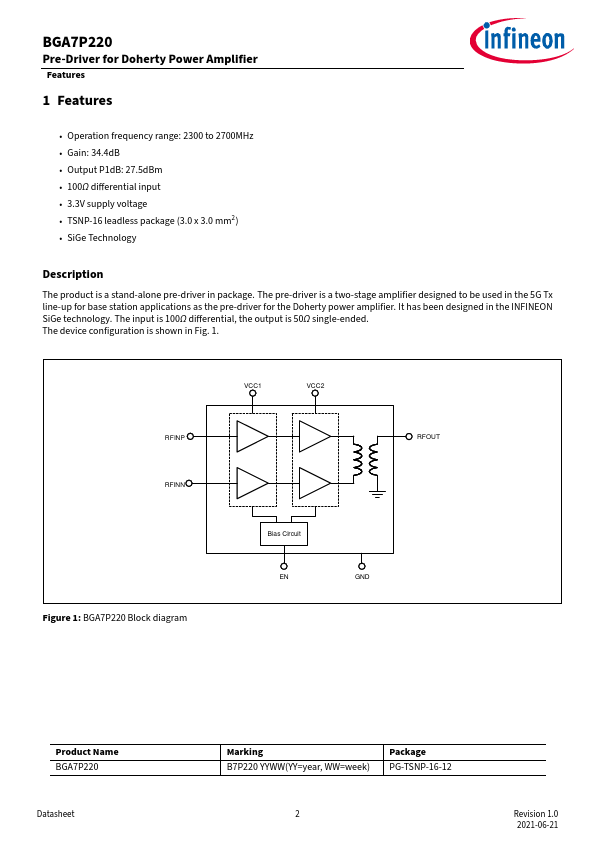

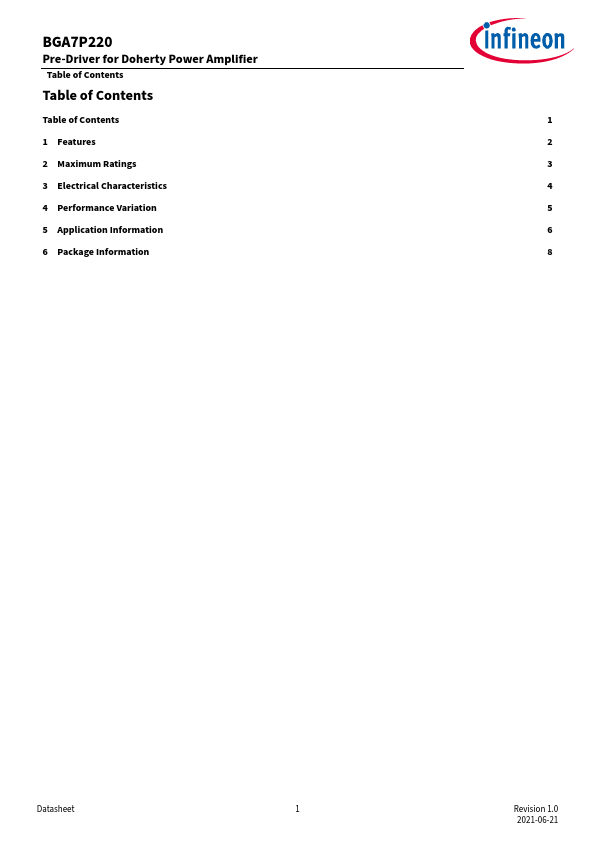

BGA7P220 Datasheet Preview Page 2 BGA7P220 Datasheet Preview Page 3

Datasheet Details

Part number:

BGA7P220

Manufacturer:

Infineon ↗

File Size:

371.62 KB

Description:

Pre driver.
