BGA2001 Datasheet, Amplifier, NXP

BGA2001 Features

  • Amplifier
  • Low current, low voltage
  • Very high power gain
  • Low noise figure
  • Integrated temperature compensated biasing
  • Supply and RF output pin comb

PDF File Details

Part number:

BGA2001

Manufacturer:

NXP ↗

File Size:

94.07kb

Download:

📄 Datasheet

Description:

Silicon mmic amplifier. Silicon MMIC amplifier consisting of an NPN double polysilicon transistor with integrated biasing for low voltage applications in a p

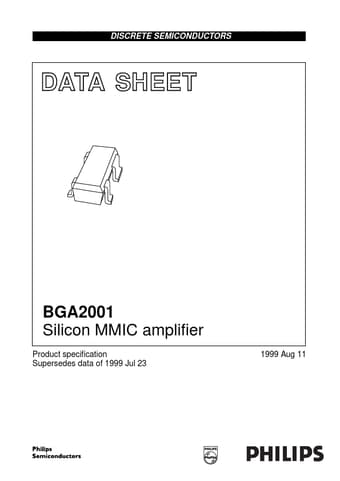

Datasheet Preview: BGA2001 📥 Download PDF (94.07kb)
Page 2 of BGA2001 Page 3 of BGA2001

BGA2001 Application

  • Applications
  • RF front end
  • Wideband applications, e.g. analog and digital cellular telephones, cordless telephones (PHS, DECT, et
