BGA123L4 - Small Footprint Ultra Low Current Low Noise Amplifier

Product Overview

Infineon

📥 Download Datasheet

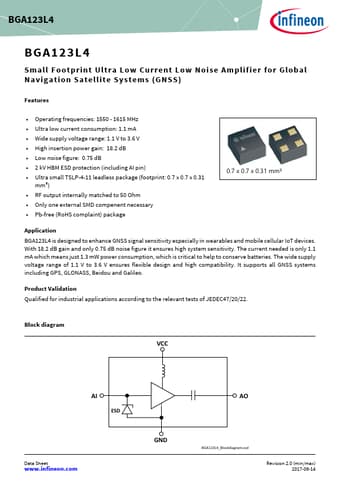

BGA123L4 Small Footprint Ultra Low Current Low Noise Amplifier by Infineon - Datasheet Preview — Datasheet preview – BGA123L4

Datasheet Details

Part number	BGA123L4
Manufacturer	Infineon
File Size	208.92 KB
Description	Small Footprint Ultra Low Current Low Noise Amplifier
Datasheet	BGA123L4 Datasheet
Additional preview pages of the BGA123L4 datasheet.

Product details

Features

Operating frequencies: 1550 - 1615 MHz.
Ultra low current consumption: 1.1 mA.
Wide supply voltage range: 1.1 V to 3.6 V.
High insertion power gain: 18.2 dB.
Low noise figure: 0.75 dB.
2 kV HBM ESD protection (including AI pin).
Ultra small TSLP-4-11 leadless package (footprint: 0.7 x 0.7 x 0.31 mm3).
RF output internally matched to 50 Ohm.
Only one external SMD compenent necessary.
Pb-free (RoHS complain.
