BGA2031-1

MMIC variable gain amplifier

BGA2031-1 Features

* High gain

* Excellent adjacent channel power rejection

* Small SMD package

* Low dissipation. APPLICATIONS

* General purpose variable gain amplifier for low voltage and medium power

* Driver for power amplifiers in systems that require good linearity, such as CDMA, both cel

BGA2031-1 General Description

Silicon Monolitic Microwave Integrated Circuit (MMIC) 2 stage variable gain amplifier in double polysilicon technology in a 6-pin SOT363 SMD plastic package for low voltage medium power applications. PINNING PIN 1 2 3 4 5 6 DESCRIPTION RFin CTRL VS1 VS2 + RFout GND GND handbook, halfpage 6 54 VS.

BGA2031-1 Datasheet (86.72 KB)

Preview of BGA2031-1 PDF

Datasheet Details

Part number:

BGA2031-1

Manufacturer:

NXP ↗

File Size:

86.72 KB

Description:

Mmic variable gain amplifier.

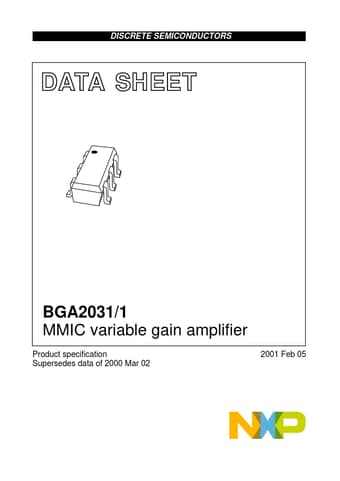

DISCRETE SEMICONDUCTORS DATA SHEET dbook, halfpage MBD128 BGA2031/1 MMIC variable gain amplifier Product specification Supersedes data of 2000 Mar.
