BGA7127, high linearity silicon amplifier

BGA7127 400 MHz to 2700 MHz 0.5 W high linearity silicon amplifier Rev.3 * 3 December 2010 Product data sheet 1.Product profile 1.1 Gen.
The MMIC is a one-stage amplifier, offered in a low-cost leadless surface-mount package.

BGA7127_PhilipsSemiconductors.pdf

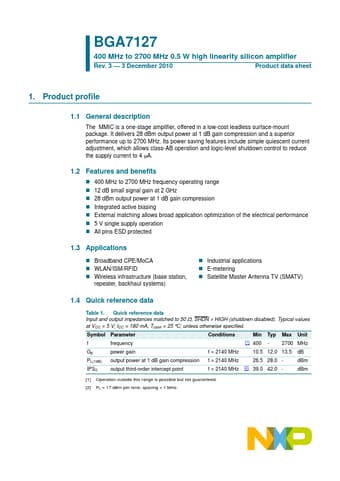

BGA7127 Datasheet Preview — Preview of BGA7127 PDF

Datasheet Details

Part number:

BGA7127

Manufacturer:

NXP ↗

File Size:

691.41 KB

Description:

high linearity silicon amplifier

Features

* 400 MHz to 2700 MHz frequency operating range
* 12 dB small signal gain at 2 GHz
* 28 dBm output power at 1 dB gain compression
* Integrated active biasing

Applications

* Broadband CPE/MoCA
* WLAN/ISM/RFID
* Wireless infrastructure (base station, repeater, backhaul systems)
* Industrial applications
* E-metering
* Satellite Master Antenna TV (SMATV) 1.4 Quick reference data Table 1. Quick reference data Input and o
