BGA7024 Datasheet, Amplifier, NXP

BGA7024 Features

  • Amplifier
  • 400 MHz to 2700 MHz frequency operating range 16 dB small signal gain at 2 GHz 24 dBm output power at 1 dB gain com

PDF File Details

Part number:

BGA7024

Manufacturer:

NXP ↗

File Size:

305.36kb

Download:

📄 Datasheet

Description:

400 mhz to 2700 mhz 0.25 w high linearity silicon amplifier. The BGA7024 MMIC is a one-stage amplifier, available in a low-cost surface-mount package. It delivers 24 dBm output power at 1 dB gai

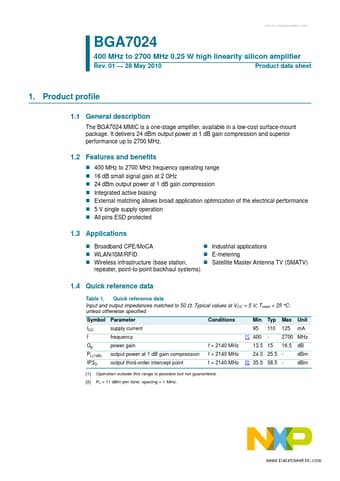

Datasheet Preview: BGA7024 📥 Download PDF (305.36kb)
Page 2 of BGA7024 Page 3 of BGA7024

BGA7024 Application

  • Applications
  • Broadband CPE/MoCA
  • Industrial applications
  • WLAN/ISM/RFID
  • E-metering
  • Wireless infrastr
