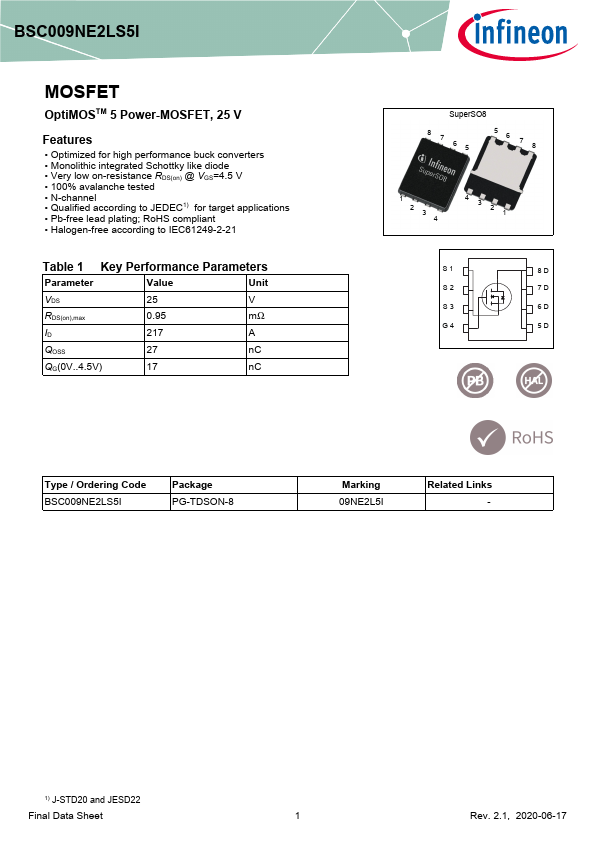

* Optimized for high performance buck converters
* Monolithic integrated Schottky like diode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% avalanche tested
* N-channel
* Qualified according to JEDEC1) for target applications
* Pb-free le
BSC009NE2LS5I Datasheet (1.48 MB)
BSC009NE2LS5I
1.48 MB
Mosfet.
MOSFET
Metal Oxide Semiconductor Field Effect Transistor
OptiMOSTM
OptiMOSTM5 Power-MOSFET, 25 V BSC009NE2LS5I
Data Sheet
Rev. 2.0 Final
Power Managem.
