BSC012N06NS 60V MOSFET

Infineon

Description

BSC012N06NS MOSFET OptiMOSTM5 Power-Transistor, 60 V .

📥 Download Datasheet

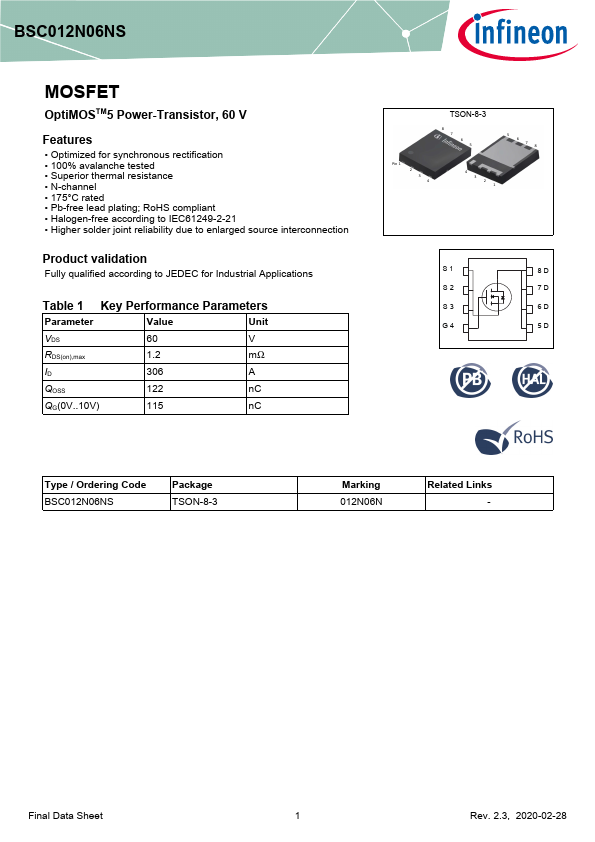

BSC012N06NS Datasheet Preview — Preview of BSC012N06NS PDF

Datasheet Specifications

Part number: BSC012N06NS
Manufacturer: Infineon ↗
File Size: 902.17 KB
Datasheet: BSC012N06NS-Infineon.pdf
Description: 60V MOSFET

Features

* Optimized for synchronous rectification
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* 175°C rated
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Higher solder joint reliability

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 1.2 mΩ ID 306 A QOSS 122 nC QG(0V. .10V) 115 nC TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSC012N06NS Package TSON-8-3 Marking 012N06N
