Datasheet Details
- Part number
- BSC010NE2LSI
- Manufacturer
- Infineon ↗
- File Size
- 1.37 MB
- Datasheet
- BSC010NE2LSI-Infineon.pdf
- Description
- 25V MOSFET
BSC010NE2LSI Description

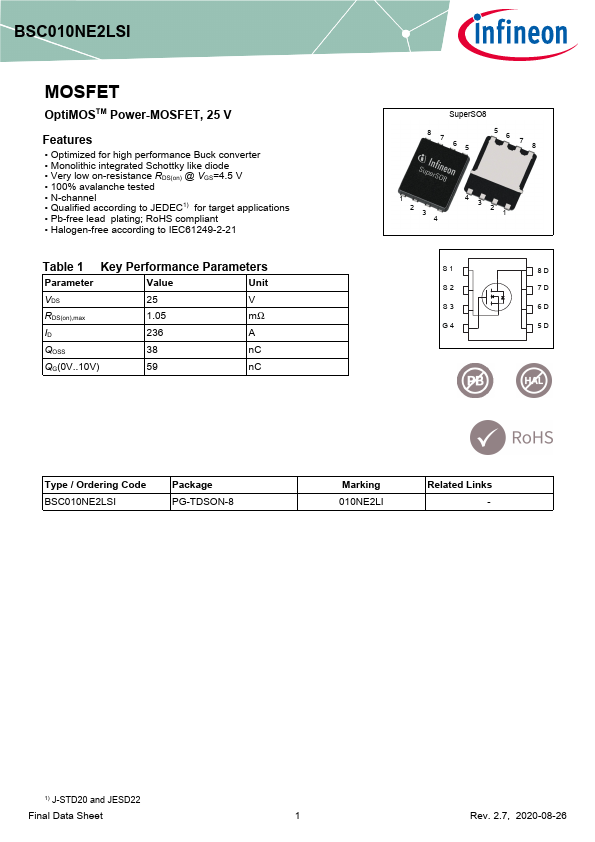

BSC010NE2LSI MOSFET OptiMOSTM Power-MOSFET, 25 V .
BSC010NE2LSI Features
* Optimized for high performance Buck converter
* Monolithic integrated Schottky like diode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% avalanche tested
* N-channel
BSC010NE2LSI Applications
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
Table 1 Key Performance Parameters
Parameter
Value
Unit
VDS
25
V
RDS(on),max
1.05
mΩ
ID
236
A
QOSS
38
nC
QG(0V. .10V)
59
nC
SuperSO8
8 7 65
56 78
1 23 4
4321
S1
8D
S2
7D
