BSC010N04LS6, 40V MOSFET

BSC010N04LS6 MOSFET OptiMOSTM 6 Power-Transistor, 40 V .

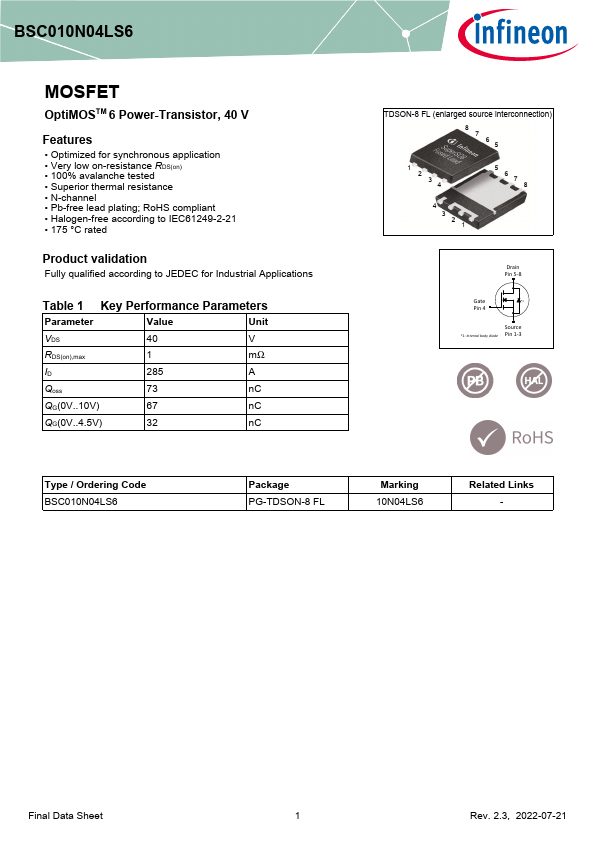

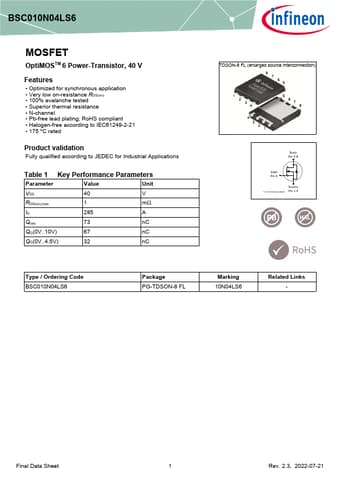

datasheet Preview Page 1 from Datasheet4u.com

BSC010N04LS6-Infineon.pdf

BSC010N04LS6 Datasheet Preview — Preview of BSC010N04LS6 PDF

Datasheet Details

Part number:

BSC010N04LS6

Manufacturer:

Infineon ↗

File Size:

1.57 MB

Description:

40V MOSFET

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 1 mΩ ID 285 A Qoss 73 nC QG(0V. .10V) 67 nC QG(0V. .4.5V) 32 nC TDSON-8 FL (enlarged source interconnection) 8 7 65 1 2 3 4 4 3 2 1 5 67 8 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Inter
