BSC010N04LSC Datasheet - Infineon

BSC010N04LSC, 40V MOSFET

BSC010N04LSC (UL2595) MOSFET OptiMOSTM5 Power-Transistor, 40V .

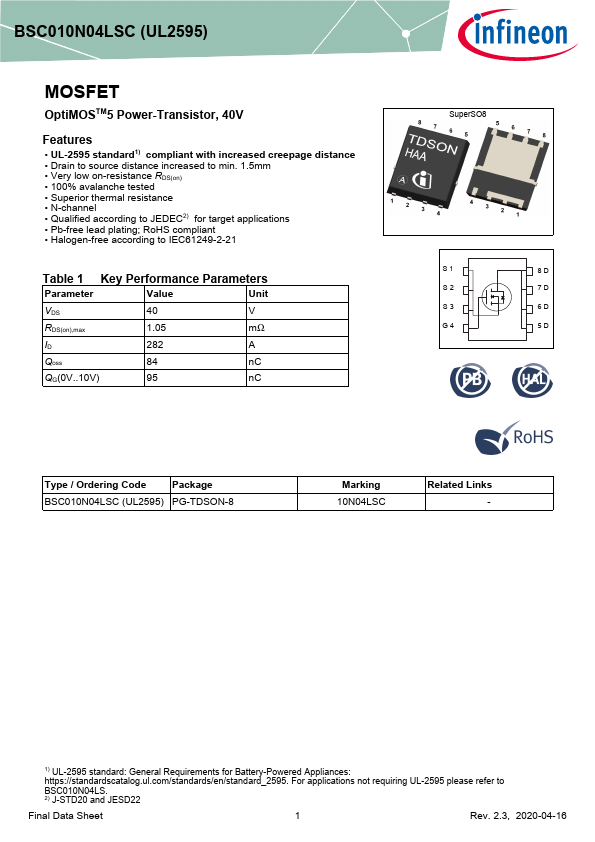

 Datasheet Preview Page 1

BSC010N04LSC-Infineon.pdf

Preview of BSC010N04LSC PDF

Datasheet Details

Part number:

BSC010N04LSC

Manufacturer:

Infineon ↗

File Size:

1.11 MB

Description:

40V MOSFET

Features

* UL-2595 standard1) compliant with increased creepage distance
* Drain to source distance increased to min. 1.5mm
* Very low on-resistance RDS(on)
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* Qualified according to JEDE

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 1.05 mΩ ID 282 A Qoss 84 nC QG(0V. .10V) 95 nC SuperSO8 S1 8D S2 7D S3 6D G4 5D Type / Orderin
