BSC014N06NSSC Datasheet, Mosfet, Infineon

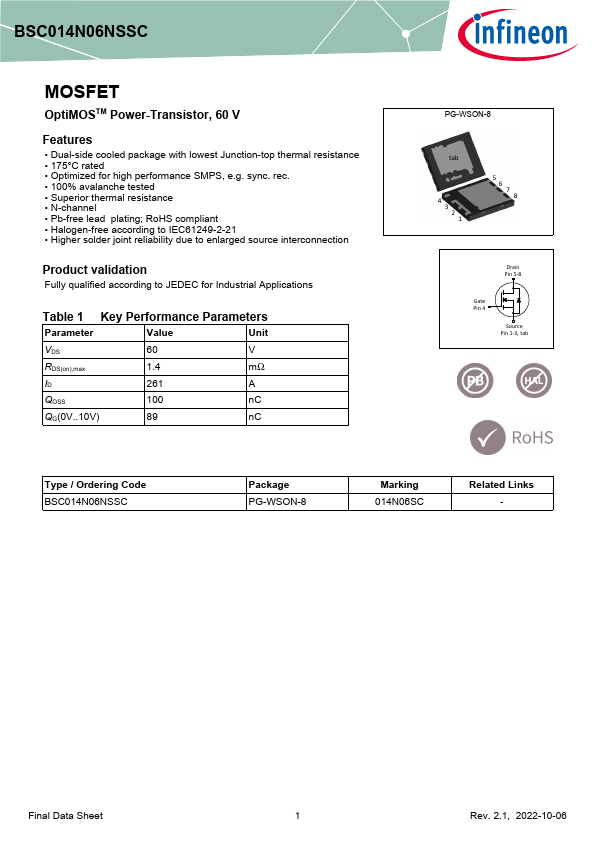

BSC014N06NSSC Features

• Mosfet
• Double side cooled package-with lowest Junction-top thermal resistance
• 175°C rated
• Optimized for high performance SMPS, e.g. sync. rec.
• 100% aval

PDF File Details

Part number:

BSC014N06NSSC

Manufacturer:

Infineon ↗

File Size:

920.15kb

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BSC014N06NSSC Application

• Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 1.4 mΩ ID 261 A QOSS 100 nC QG(0V..10
