BSS138W - Small-Signal Transistor

Datasheet Summary

Features

  • N-channel.
  • Enhancement mode.
  • Logic level.
  • dv /dt rated.
  • Pb-free lead-plating; RoHS compliant.
  • Qualified according to AEC Q101.
  • Halogen-free according to IEC61249-2-21 Product Summary V DS R DS(on),max ID BSS138W 60 V 3.5 Ω 0.28 A PG-SOT-323 Type BSS138W BSS138W Package PG-SOT-323 PG-SOT-323 Tape and Reel H6327: 3000 / H6433: 10000 Marking SWs SWs Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Co.

📥 Download Datasheet

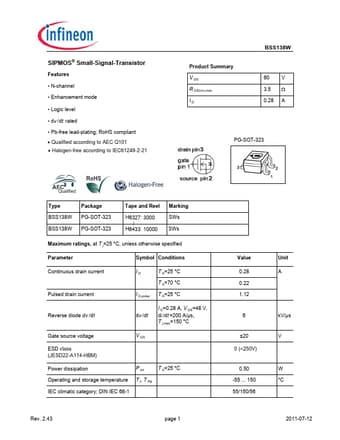

Datasheet preview – BSS138W
