BTG70013A-1ESW - Wire Guard smart power high-side switch

Infineon

📥 Download Datasheet

BTG70013A-1ESW Datasheet Preview — Preview of BTG70013A-1ESW PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTG70013A-1ESW
Manufacturer	Infineon ↗
File Size	1.36 MB
Description	Wire Guard smart power high-side switch
Datasheet	BTG70013A-1ESW-Infineon.pdf

BTG70013A-1ESW Product details

Description

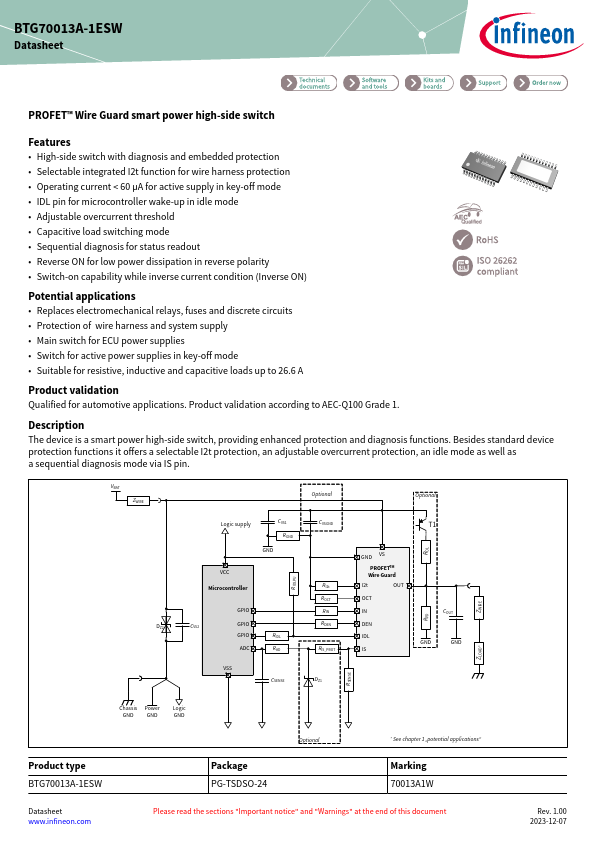

The device is a smart power high-side switch, providing enhanced protection and diagnosis functions.

Features

High-side switch with diagnosis and embedded protection.
Selectable integrated I2t function for wire harness protection.
Operating current < 60 µA for active supply in key-off mode.
IDL pin for microcontroller wake-up in idle mode.
Adjustable overcurrent threshold.
Capacitive load switching mode.
Sequential diagnosis for status readout.
Reverse ON for low power dissipation in reverse polarity.
Switch-on capability.
