BTG7050-2EPL, Smart high-side power switch

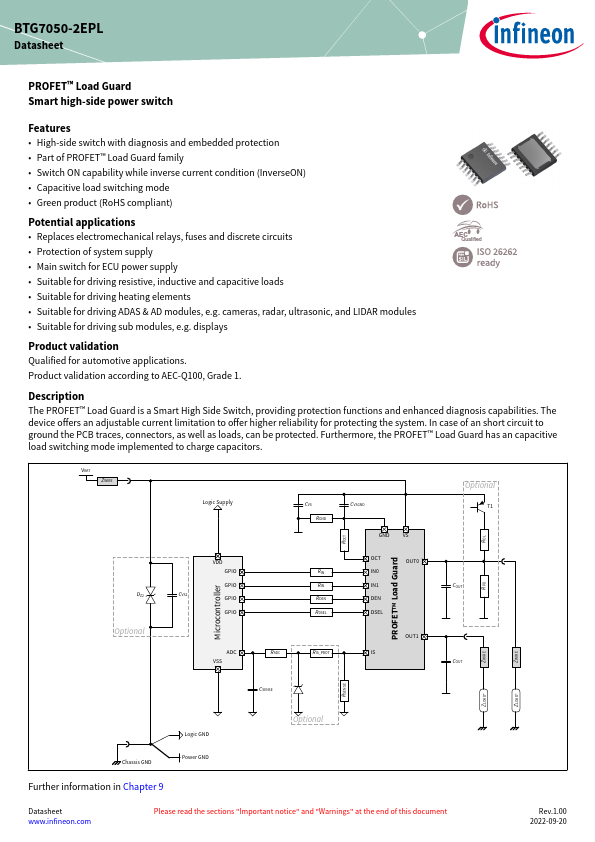

BTG7050-2EPL Datasheet PROFET™ Load Guard Smart high-side power switch .
The PROFET™ Load Guard is a Smart High Side Switch, providing protection functions and enhanced diagnosis capabilities.

datasheet Preview Page 1 from Datasheet4u.com

BTG7050-2EPL-Infineon.pdf

BTG7050-2EPL Datasheet Preview — Preview of BTG7050-2EPL PDF

Datasheet Details

Part number:

BTG7050-2EPL

Manufacturer:

Infineon ↗

File Size:

907.19 KB

Description:

Smart high-side power switch

Features

* High-side switch with diagnosis and embedded protection
* Part of PROFET™ Load Guard family
* Switch ON capability while inverse current condition (InverseON)
* Capacitive load switching mode

Applications

* Replaces electromechanical relays, fuses and discrete circuits
* Protection of system supply
* Main switch for ECU power supply
* Suitable for driving resistive, inductive and capacitive loads
* Suitable for driving heating elements
* Suitable for dr
