BTG7090-1EPL Smart high-side power switch

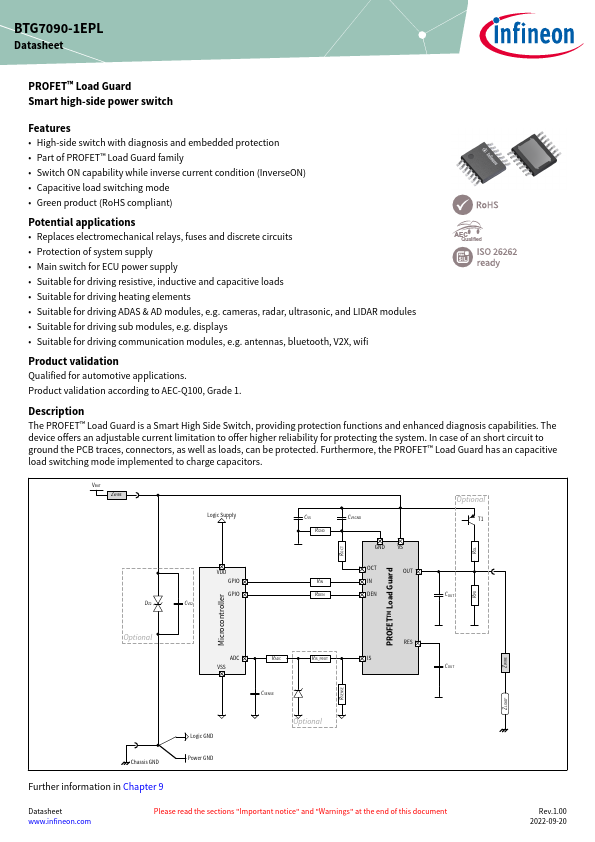

📥 Download Datasheet Datasheet Preview Page 1

Description

BTG7090-1EPL Datasheet PROFET™ Load Guard Smart high-side power switch .
The PROFET™ Load Guard is a Smart High Side Switch, providing protection functions and enhanced diagnosis capabilities.

📥 Download Datasheet

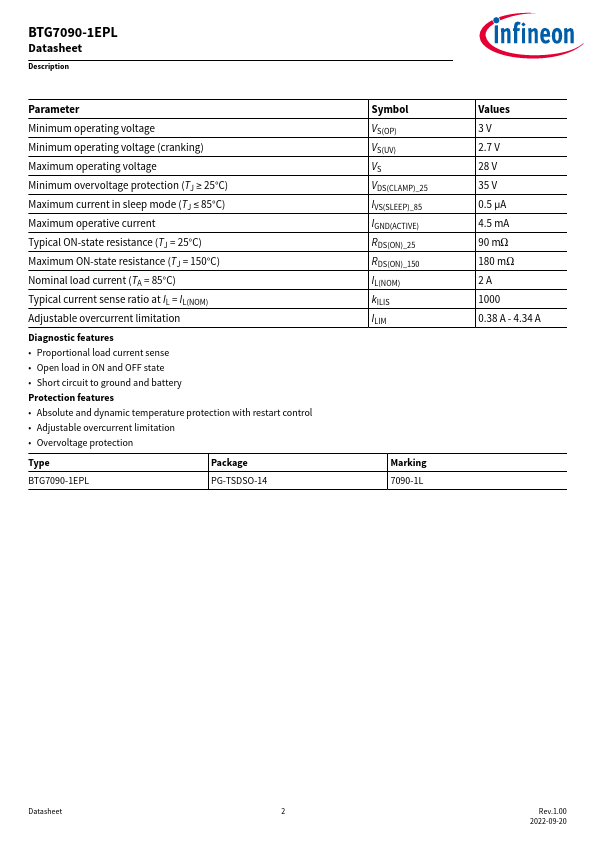

Preview of BTG7090-1EPL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* High-side switch with diagnosis and embedded protection
* Part of PROFET™ Load Guard family
* Switch ON capability while inverse current condition (InverseON)
* Capacitive load switching mode

Applications

* Replaces electromechanical relays, fuses and discrete circuits
* Protection of system supply
* Main switch for ECU power supply
* Suitable for driving resistive, inductive and capacitive loads
* Suitable for driving heating elements
* Suitable for dr
