BTG7016A-1EPW, Wire Guard smart power high-side switch

BTG7016A-1EPW Datasheet PROFET™ Wire Guard smart power high-side switch .
The device is a smart power high-side switch, providing enhanced protection and diagnosis functions.

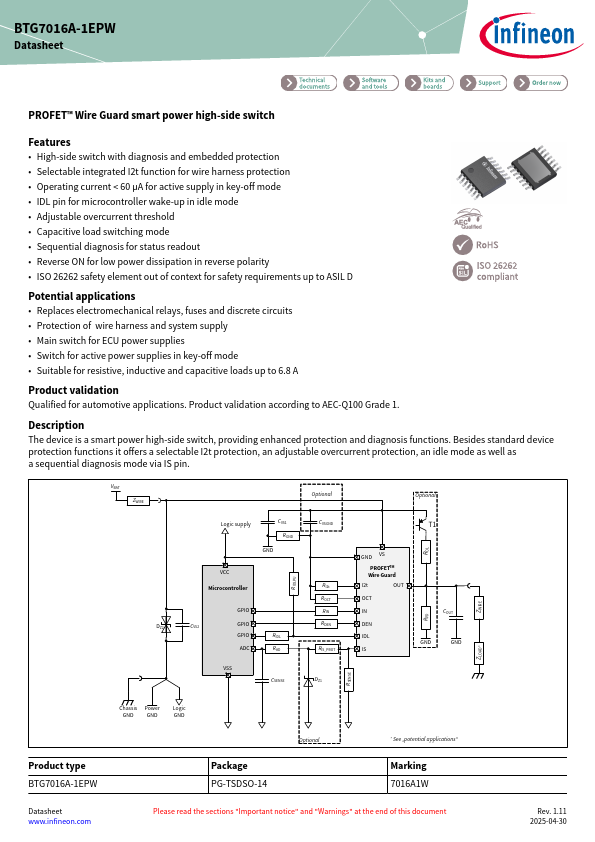

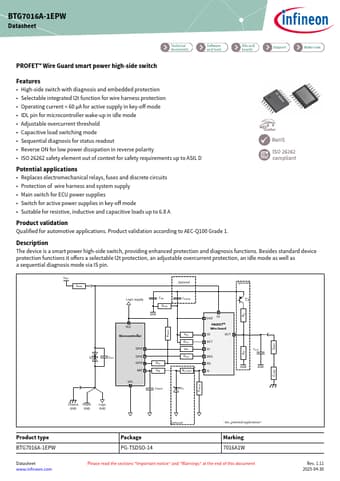

datasheet Preview Page 1 from Datasheet4u.com

BTG7016A-1EPW-Infineon.pdf

BTG7016A-1EPW Datasheet Preview — Preview of BTG7016A-1EPW PDF

Datasheet Details

Part number:

BTG7016A-1EPW

Manufacturer:

Infineon ↗

File Size:

1.60 MB

Description:

Wire Guard smart power high-side switch

Features

* High-side switch with diagnosis and embedded protection
* Selectable integrated I2t function for wire harness protection
* Operating current < 60 µA for active supply in key-off mode
* IDL pin for microcontroller wake-up in idle mode
* Adjustable overcurrent

Applications

* Replaces electromechanical relays, fuses and discrete circuits
* Protection of wire harness and system supply
* Main switch for ECU power supplies
* Switch for active power supplies in key-off mode
* Suitable for resistive, inductive and capacitive loads up
