BTG7050-1EPL - Smart high-side power switch

Infineon

📥 Download Datasheet

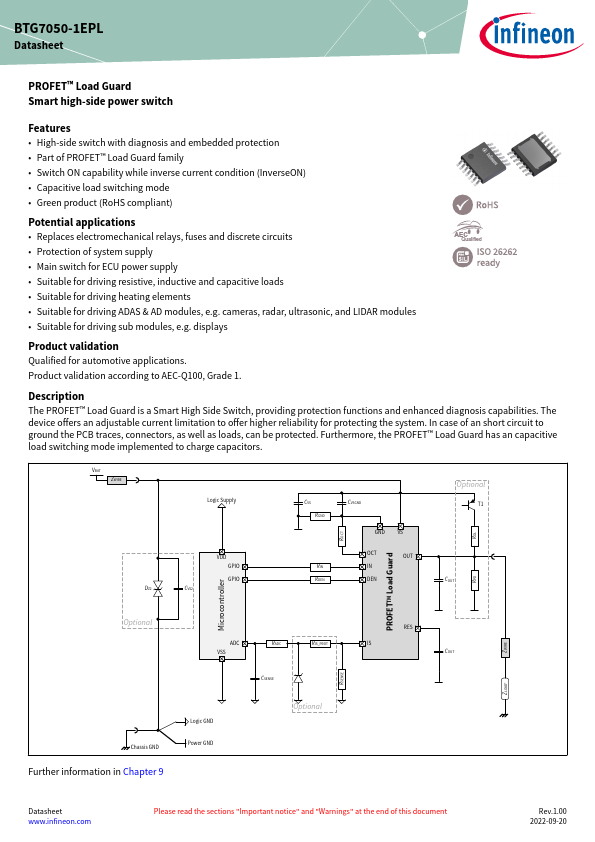

BTG7050-1EPL Datasheet Preview — Preview of BTG7050-1EPL PDF

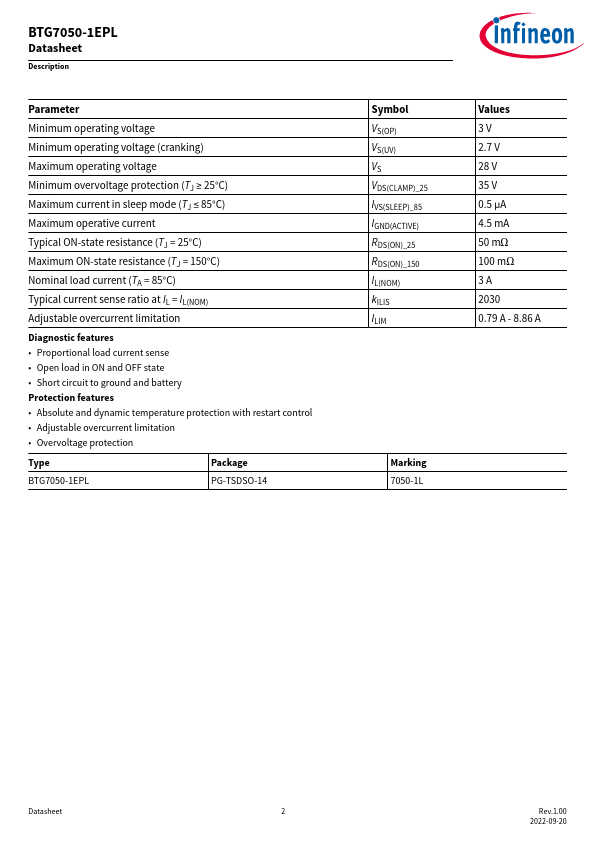

datasheet Preview Page 2

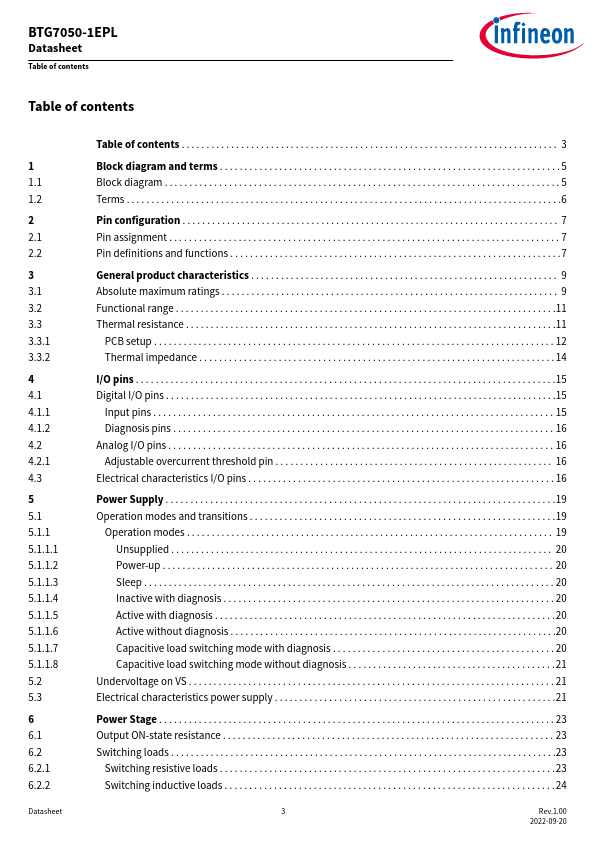

datasheet Preview Page 3

Datasheet Details

Part number	BTG7050-1EPL
Manufacturer	Infineon ↗
File Size	891.74 KB
Description	Smart high-side power switch
Datasheet	BTG7050-1EPL-Infineon.pdf

BTG7050-1EPL Product details

Description

The PROFET™ Load Guard is a Smart High Side Switch, providing protection functions and enhanced diagnosis capabilities.

Features

High-side switch with diagnosis and embedded protection.
Part of PROFET™ Load Guard family.
Switch ON capability while inverse current condition (InverseON).
Capacitive load switching mode.
Green product (RoHS compliant) Potential.
