BTS133TC Datasheet - Infineon

Smart Low Side Power Switch

BTS133TC Features

* Logic Level Input

* Input Protection (ESD)

* =Thermal shutdown with latch

* Short circuit and Overload protection

* Overvoltage protection

* Current limitation

* Status feedback with external input resistor

* Analog driving possible

BTS133TC General Description

N channel vertical power FET in Smart SIPMOS® chip on chip technology. Providing embedded protection functions. Vbb + LOAD M 1 IN dv/dt lim itation C u rre n t lim itation O v e rvo lta g e protection D ra in 2 ESD O v e rlo a d p ro te c tio n O ve rtem perature p ro te c tio n SShhoorr.

BTS133TC Datasheet (246.74 KB)

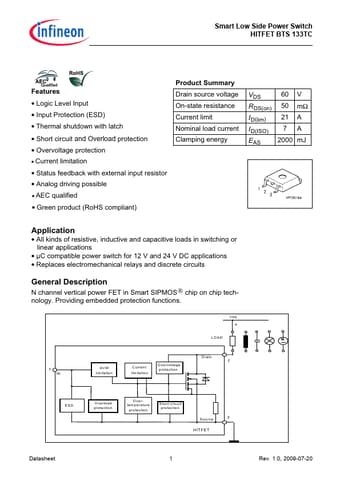

Preview of BTS133TC PDF

Datasheet Details

Part number:

BTS133TC

Manufacturer:

Infineon ↗

File Size:

246.74 KB

Description:

Smart low side power switch.
