BTS133 - Smart Lowside Power Switch

Description

N channel vertical power FET in Smart SIPMOS ® chip on chip technology.

Fully protected by embedded protected functions.

Features

  • Logic Level Input.
  • Input Protection (ESD).
  • Thermal Shutdown.
  • Overload protection.
  • Short circuit protection.
  • Overvoltage protection.
  • Current limitation.
  • Status feedback with external input resistor.
  • Analog driving possible Product Summary Drain source voltage On-state resistance Current limit Nominal load current Clamping energy VDS RDS(on) ID(lim) ID(ISO) EAS 60 50 21 7 V mΩ A A 2000 mJ.

📥 Download Datasheet

Datasheet preview – BTS133

📁 Similar Datasheet

  • BTS133 - Smart Low Side Power Switch (Infineon Technologies AG)
  • BTS133TC - Smart Low Side Power Switch (Infineon)
  • BTS130 - MOSFET (Infineon Technologies AG)
  • BTS131 - MOSFET (Infineon Technologies AG)
  • BTS132 - MOSFET (Infineon Technologies AG)
  • BTS134D - Smart Lowside Power Switch (Infineon Technologies AG)
  • BTS100 - Smart Highside Power Switch (Infineon Technologies AG)
  • BTS110 - TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic) (Infineon Technologies AG)
  • BTS110 - TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic) (Infineon Technologies AG)
  • BTS112A - TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic) (Infineon Technologies AG)
Other Datasheets by Siemens Semiconductor Group
  • BTS130 - MOSFET
  • BTS131 - MOSFET
  • BTS132 - MOSFET
  • BTS100 - Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
  • BTS110 - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • BTS112A - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • BTS113A - TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • BTS114A - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)

Full PDF Text Transcription

Click to expand full text

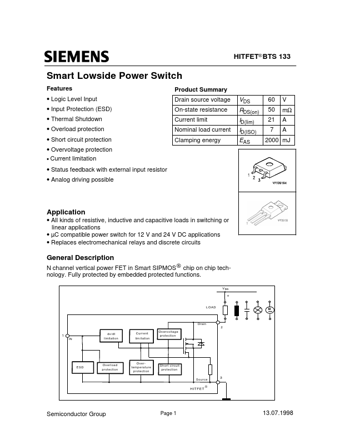

HITFET® BTS 133 Smart Lowside Power Switch Features • Logic Level Input • Input Protection (ESD) • Thermal Shutdown • Overload protection • Short circuit protection • Overvoltage protection • Current limitation • Status feedback with external input resistor • Analog driving possible Product Summary Drain source voltage On-state resistance Current limit Nominal load current Clamping energy VDS RDS(on) ID(lim) ID(ISO) EAS 60 50 21 7 V mΩ A A 2000 mJ Application • All kinds of resistive, inductive and capacitive loads in switching or linear applications • µC compatible power switch for 12 V and 24 V DC applications • Replaces electromechanical relays and discrete circuits General Description N channel vertical power FET in Smart SIPMOS ® chip on chip technology.
