BTS71033-6ESP - Serial Interface Power Controller

BTS71033-6ESP Description

BTS71033-6ESP SPOC™ +2 Serial Interface Power Controller 3x 22.5 mΩ 3x 70 mΩ Package Marking PG-TSDSO-24 71033-6ESP 1 Overview Potential Applica.
The BTS71033-6ESP is a Serial Interface Power Controller, providing protection functions and diagnosis.

BTS71033-6ESP Features

* High-Side Switch with Diagnosis and Embedded Protection
* Part of SPOC™ +2 Family
* Daisy Chain capable SPI interface
* 3.3 V and 5 V compatible logic pins
* Slew rate control for all Channels
* ReverseON for low power dissipation in Reverse Polarity

BTS71033-6ESP Applications

* Suitable for resistive, inductive and capacitive loads
* Replaces electromechanical relays, fuses and discrete circuits
* Driving capability suitable for 3 A and 1.5 A loads and high inrush current loads such as 27W bulb or equivalent electronic loads (e. g. LED modules) and

📥 Download Datasheet

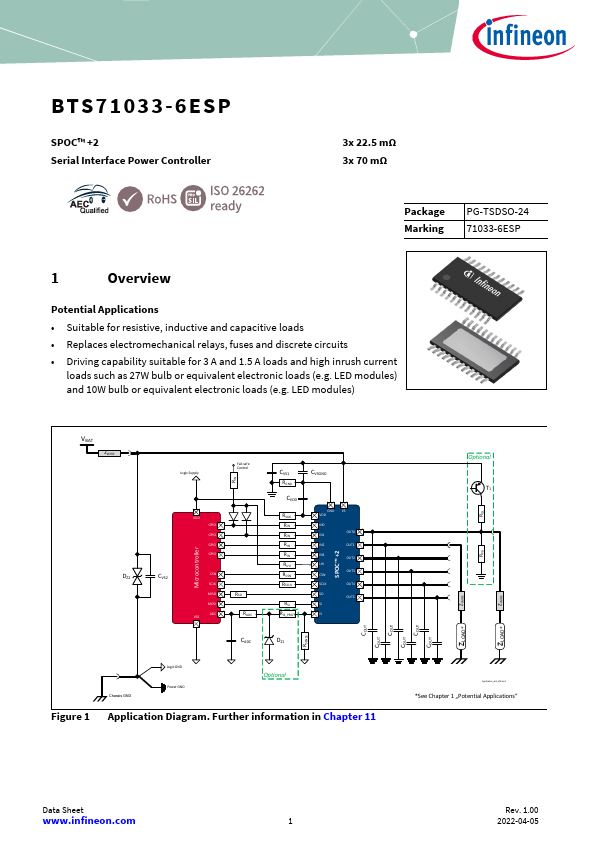

Preview of BTS71033-6ESP PDF

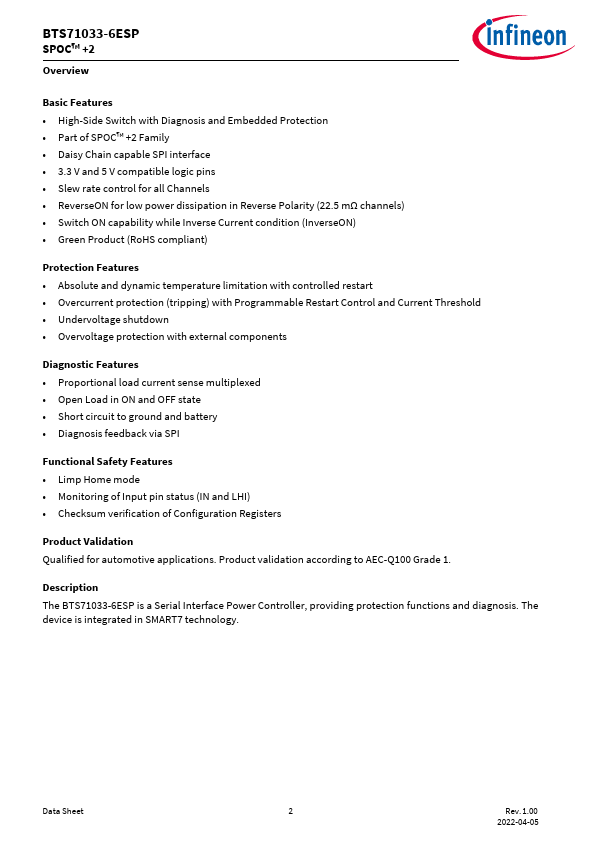

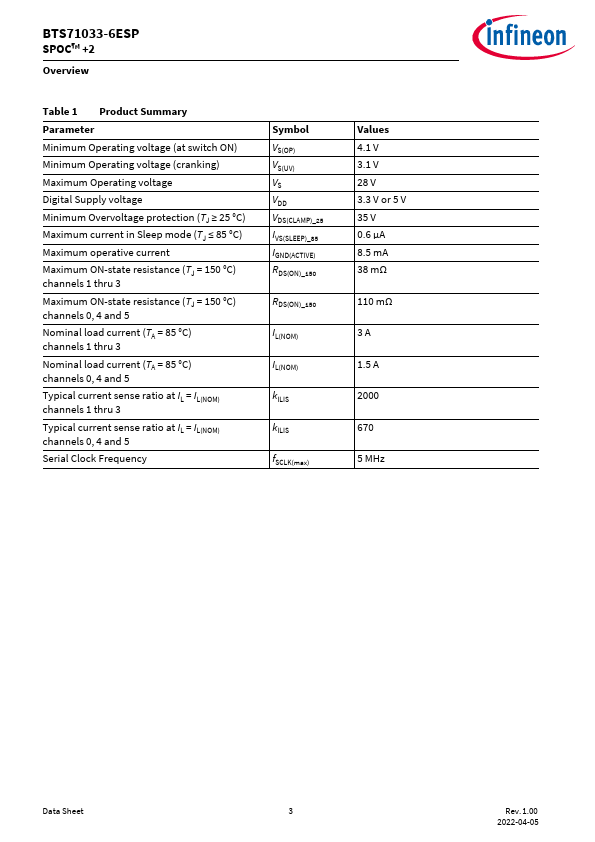

datasheet Preview Page 2 datasheet Preview Page 3
