BTS71220-4ESE - Serial Interface Power Controller

BTS71220-4ESE Description

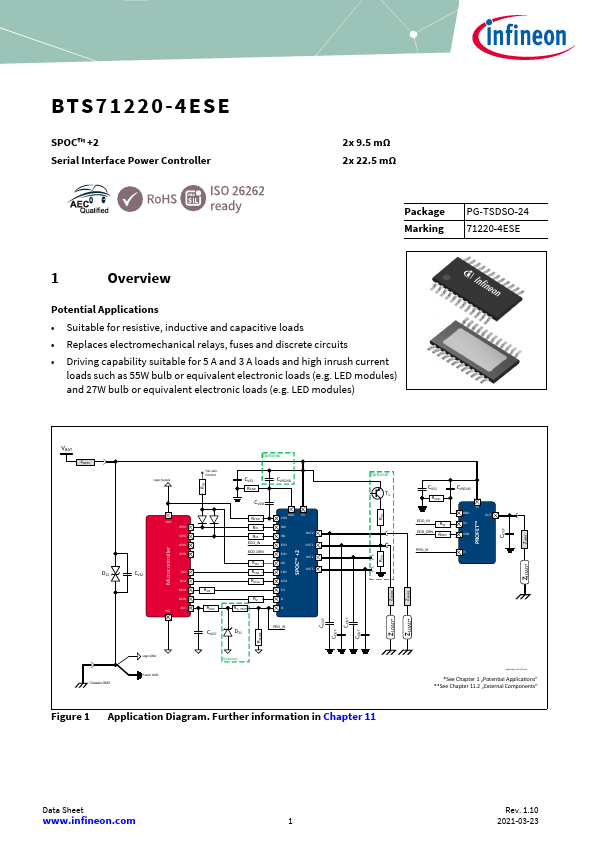

BTS71220-4ESE SPOC™ +2 Serial Interface Power Controller 2x 9.5 mΩ 2x 22.5 mΩ Package Marking PG-TSDSO-24 71220-4ESE 1 Overview Potential Applic.

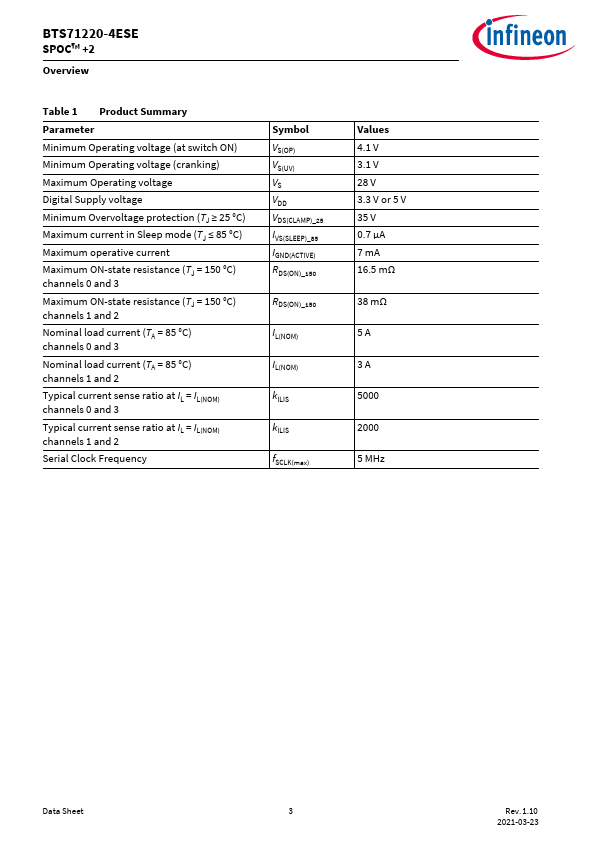

The BTS71220-4ESE is a Serial Interface Power Controller, providing protection functions and diagnosis.

BTS71220-4ESE Features

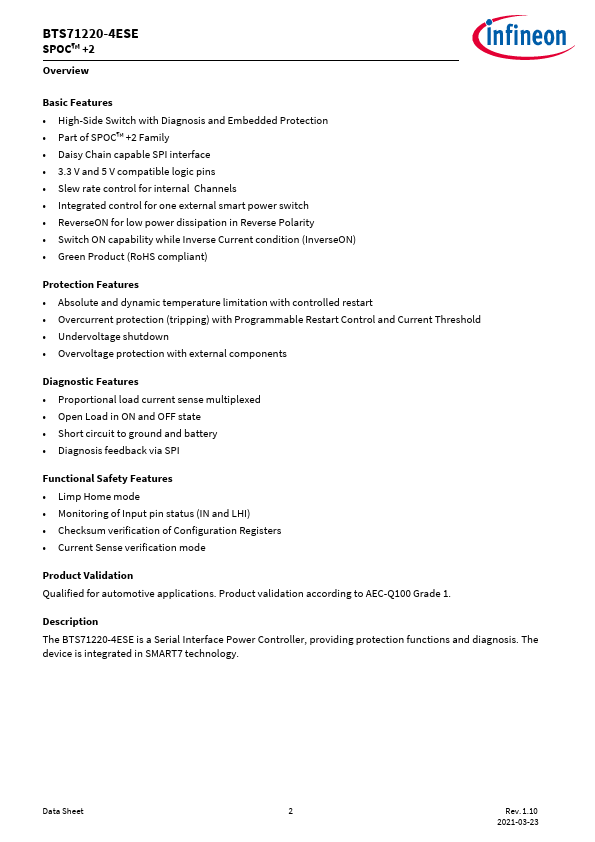

* High-Side Switch with Diagnosis and Embedded Protection
* Part of SPOC™ +2 Family
* Daisy Chain capable SPI interface
* 3.3 V and 5 V compatible logic pins
* Slew rate control for internal Channels
* Integrated control for one external smart power sw

BTS71220-4ESE Applications

* Suitable for resistive, inductive and capacitive loads
* Replaces electromechanical relays, fuses and discrete circuits
* Driving capability suitable for 5 A and 3 A loads and high inrush current loads such as 55W bulb or equivalent electronic loads (e. g. LED modules) and 2
