BTS7120-2EPA Datasheet - Infineon

Smart High-Side Power Switch

BTS7120-2EPA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection Features

* Absolute and dynamic temperature limitation wit

BTS7120-2EPA General Description

The BTS7120-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology. Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt.

BTS7120-2EPA Datasheet (813.73 KB)

Preview of BTS7120-2EPA PDF

Datasheet Details

Part number:

BTS7120-2EPA

Manufacturer:

Infineon ↗

File Size:

813.73 KB

Description:

Smart high-side power switch.
BTS7120-2EPA PROFET™ +2 12V Smart High-Side Power Switch 2x 120 mΩ Package Marking PG-TSDSO-14 7120-2A 1 Overview Potential Applications

📁 Related Datasheet

BTS71220-4ESE Serial Interface Power Controller (Infineon)

BTS71220-4ESP Serial Interface Power Controller (Infineon)

BTS712N1 Smart Four Channel Highside Power Switch (Siemens Semiconductor Group)

BTS712N1 Smart Four Channel Highside Power Switch (Infineon Technologies AG)

BTS71033-6ESA Serial Interface Power Controller (Infineon)

BTS71040-4ESA Serial Interface Power Controller (Infineon)

BTS71040-4ESE Serial Interface Power Controller (Infineon)

BTS710L1 Smart Four Channel Highside Power Switch (Siemens Semiconductor Group)

BTS711L1 Smart Four Channel Highside Power Switch (Siemens Semiconductor Group)

BTS711L1 Smart High-Side Power Switch (Infineon Technologies AG)

TAGS

BTS7120-2EPA Smart High-Side Power Switch Infineon

Image Gallery

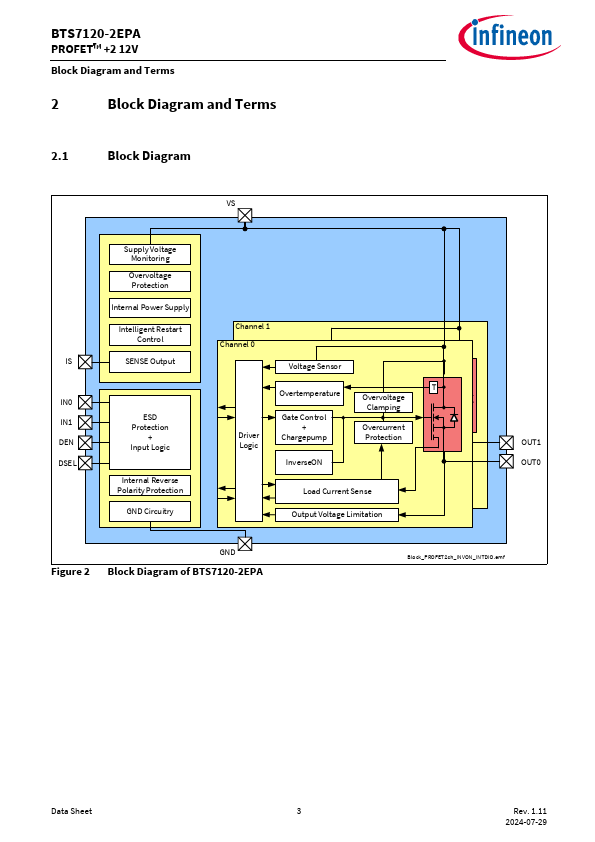

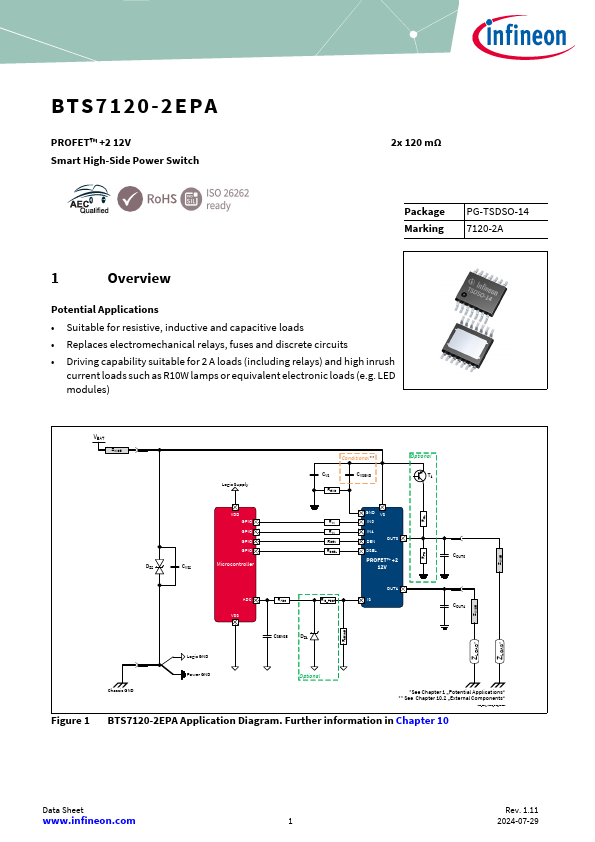

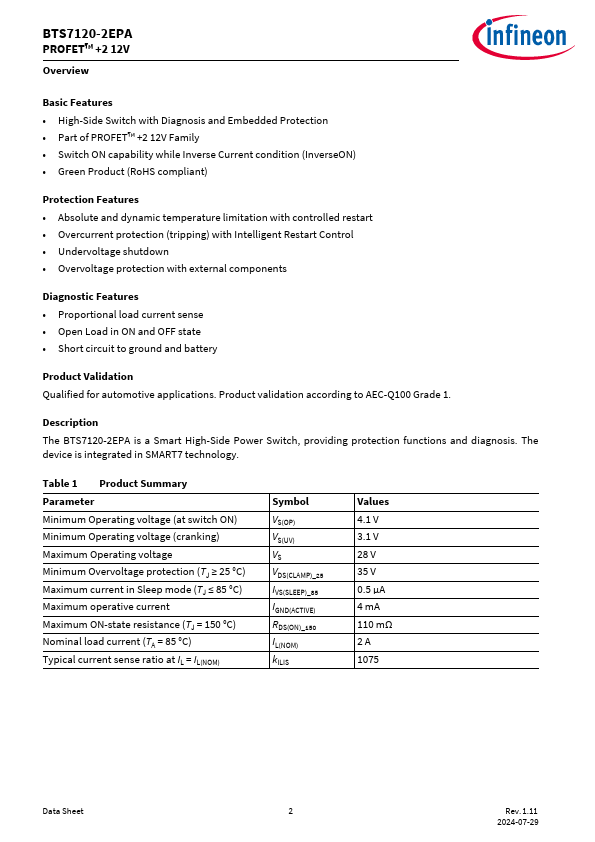

BTS7120-2EPA Datasheet Preview Page 2 BTS7120-2EPA Datasheet Preview Page 3
