BTS71040-4ESE Datasheet - Infineon

BTS71040-4ESE - Serial Interface Power Controller

The BTS71040-4ESE is a Serial Interface Power Controller, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Data Sheet 2 Rev.

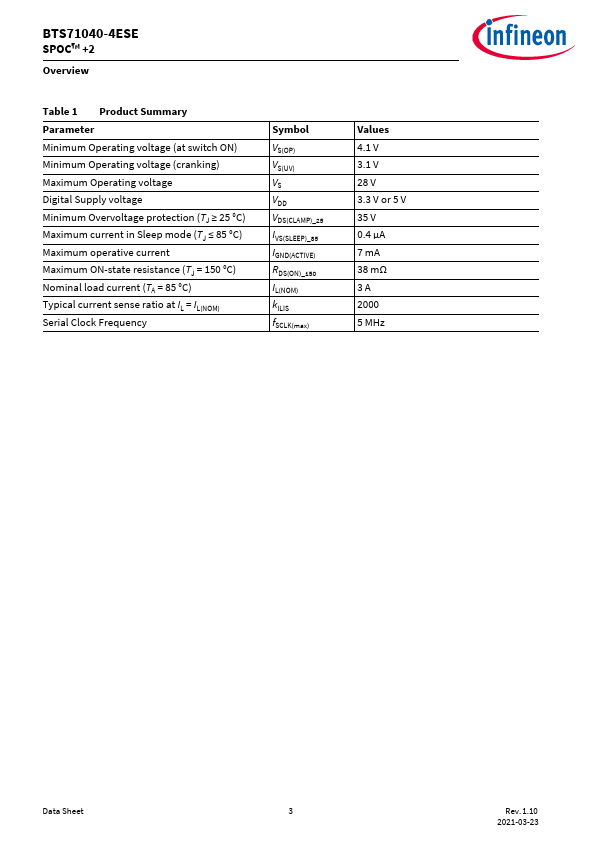

1.10 2021-03-23 BTS71040-4ESE SPOC™ +2 Overview Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Mi

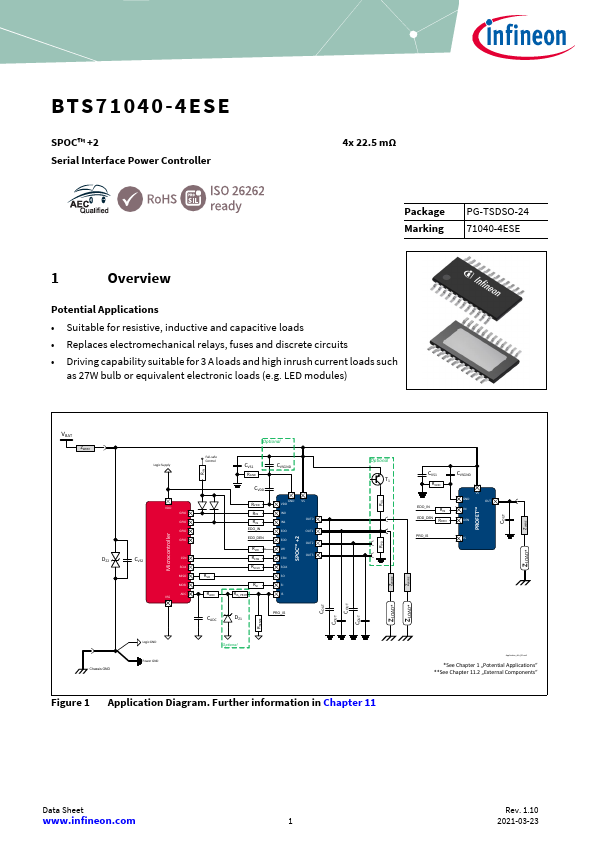

BTS71040-4ESE SPOC™ +2 Serial Interface Power Controller 4x 22.5 mΩ Package Marking PG-TSDSO-24 71040-4ESE 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 3 A loads and high inrush current loads such as 27W bulb or equivalent electronic loads (e.g.

LED modules) VBAT ZWIRE DZ2 Chassis GND Logic Supply CVS2 VDD GPIO GPIO G

BTS71040-4ESE Features

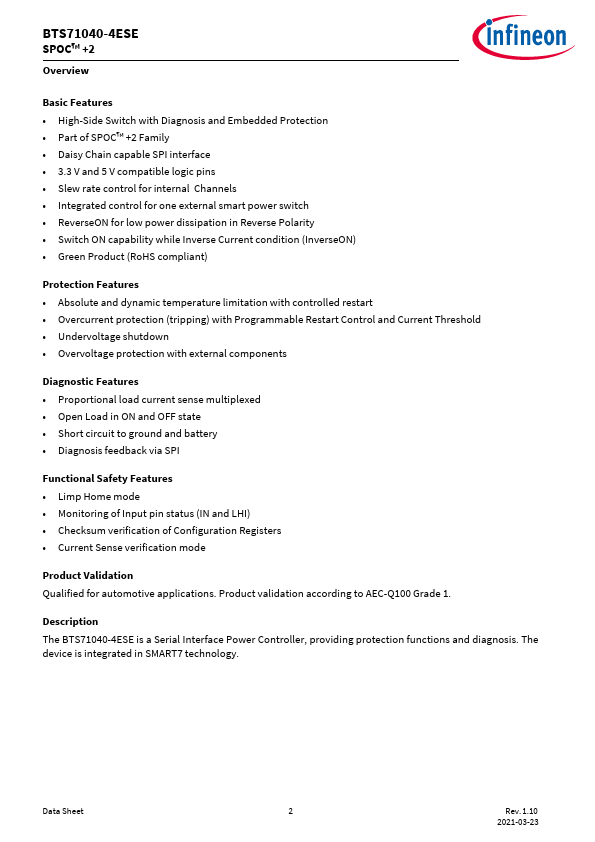

* High-Side Switch with Diagnosis and Embedded Protection

* Part of SPOC™ +2 Family

* Daisy Chain capable SPI interface

* 3.3 V and 5 V compatible logic pins

* Slew rate control for internal Channels

* Integrated control for one external smart power sw
