BTS71040-4ESA Datasheet - Infineon

BTS71040-4ESA - Serial Interface Power Controller

The BTS71040-4ESA is a Serial Interface Power Controller, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Data Sheet 2 Rev.

1.10 2021-03-23 BTS71040-4ESA SPOC™ +2 Overview Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Mi

BTS71040-4ESA SPOC™ +2 Serial Interface Power Controller 4x 22.5 mΩ Package Marking PG-TSDSO-24 71040-4ESA 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 3 A loads and high inrush current loads such as 27W bulb or equivalent electronic loads (e.g.

LED modules) VBAT ZWIRE DZ2 Logic Supply CVS2 VDD GPIO GPIO GPIO GPIO CSN

BTS71040-4ESA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of SPOC™ +2 Family

* Daisy Chain capable SPI interface

* 3.3 V and 5 V compatible logic pins

* Slew rate control for all Channels

* ReverseON for low power dissipation in Reverse Polarity

BTS71040-4ESA-Infineon.pdf

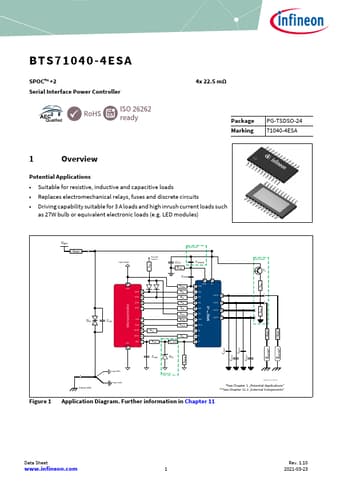

Preview of BTS71040-4ESA PDF
BTS71040-4ESA Datasheet Preview Page 2 BTS71040-4ESA Datasheet Preview Page 3

Datasheet Details

Part number:

BTS71040-4ESA

Manufacturer:

Infineon ↗

File Size:

2.75 MB

Description:

Serial interface power controller.
