FP150R07N3E4 - IGBT

Infineon

FP150R07N3E4 Datasheet Preview — Preview of FP150R07N3E4 PDF

Datasheet Details

Part number	FP150R07N3E4
Manufacturer	Infineon ↗
File Size	495.71 KB
Description	IGBT
Datasheet	FP150R07N3E4-Infineon.pdf

FP150R07N3E4 Product details

Description

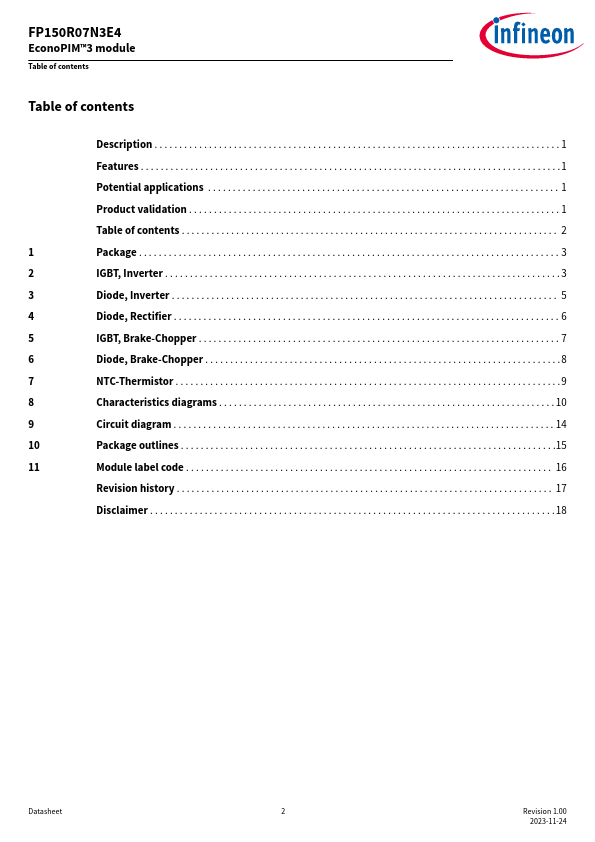

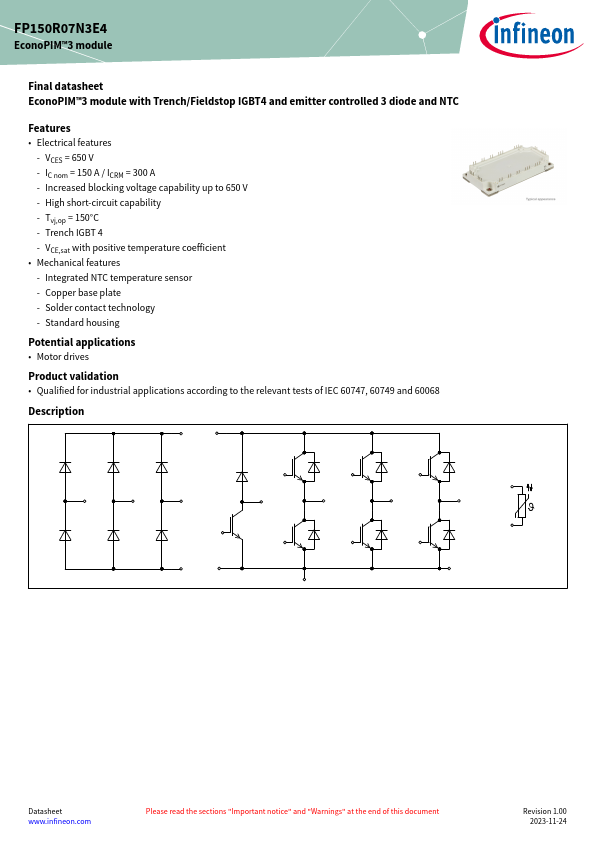

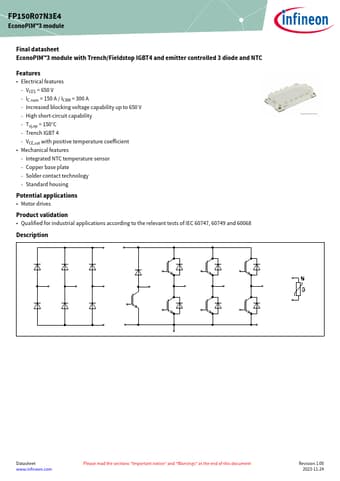

- Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-11-24 FP150R07N3E4 EconoPIM™3 module Table of contents Table of contents Description .

Features

Electrical features - VCES = 650 V - IC nom = 150 A / ICRM = 300 A - Increased blocking voltage capability up to 650 V - High short-circuit capability - Tvj,op = 150°C - Trench IGBT 4 - VCE,sat with positive temperature coefficient.
Mechanical features - Integrated NTC temperature sensor - Copper base plate - Solder contact technology - Standard housing Potential.
