FP150R12KT4P_B11 IGBT

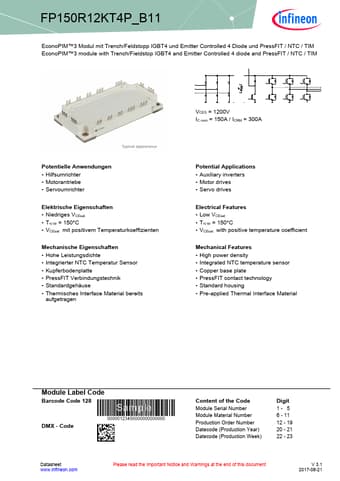

FP150R12KT4P_B11 EconoPIM™3 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und PressFIT / NTC / TIM EconoPIM™3 module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and PressFIT / NTC / TIM - VCES = 1200V IC nom = 150A / ICRM = 300A Potentielle Anwendungen Hilfsumrichter Motorantriebe Servoumrichter Elektrische Eigenschaften Niedriges VCEsat Tvj op = 150°C VCEsat mit positivem Temperaturkoeffizienten Mecha.

FP150R12KT4P_B11 Features

* Low VCEsat

* Tvj op = 150°C

* VCEsat with positive temperature coefficient Mechanical Features

* High power density

* Integrated NTC temperature sensor

* Copper base plate

* PressFIT contact technology

* Standard housing

* Pr
