FP150R07N3E4_B11 - IGBT

Infineon

📥 Download Datasheet

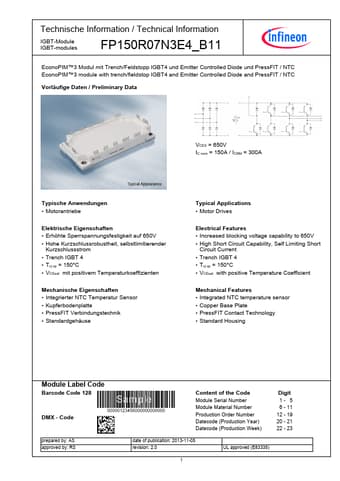

FP150R07N3E4_B11 Datasheet Preview — Preview of FP150R07N3E4_B11 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FP150R07N3E4_B11
Manufacturer	Infineon ↗
File Size	846.27 KB
Description	IGBT
Datasheet	FP150R07N3E4_B11-Infineon.pdf

FP150R07N3E4_B11 Product details

Features

Increased blocking voltage capability to 650V.
High Short Circuit Capability, Self Limiting Short Circuit Current.
Trench IGBT 4.
Tvj op = 150°C.
VCEsat with positive Temperature Coefficient Mechanical Features.
Integrated NTC temperature sensor.
Copper Base Plate.
PressFIT Contact Technology.
Standard Housing Module Label Code Barcode Code 128 DMX - Code prepared by: AS approved by: RS Content of the Code Modul.
