FP150R12KT4P IGBT

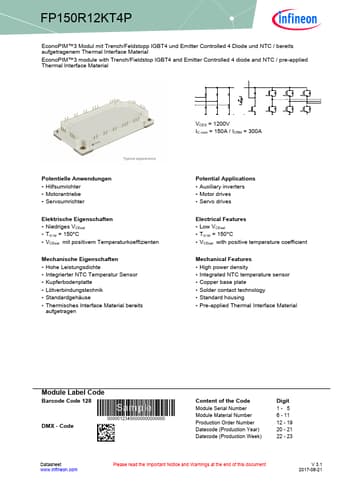

FP150R12KT4P EconoPIM™3 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und NTC / bereits aufgetragenem Thermal Interface Material EconoPIM™3 module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and NTC / pre-applied Thermal Interface Material - VCES = 1200V IC nom = 150A / ICRM = 300A Potentielle Anwendungen Hilfsumrichter Motorantriebe Servoumrichter Elektrische Eigenschaften Niedriges VCEsat Tvj op = 150°C

FP150R12KT4P Features

* Low VCEsat

* Tvj op = 150°C

* VCEsat with positive temperature coefficient Mechanical Features

* High power density

* Integrated NTC temperature sensor

* Copper base plate

* Solder contact technology

* Standard housing

* Pre-
