IDWD75E120D7

1200V Emitter controlled 7 diode

Infineon

IDWD75E120D7 Features

* VRRM = 1200 V

* IF = 75 A

* 1200 V emitter controlled technology

* Maximum junction temperature Tvjmax = 175°C

* Low forward voltage (VF)

* Low reverse recovery charge

* Ultrafast recovery times

* Soft recovery characteristics

IDWD75E120D7 General Description

Pin definition:

* Pin 1 and backside - Cathode

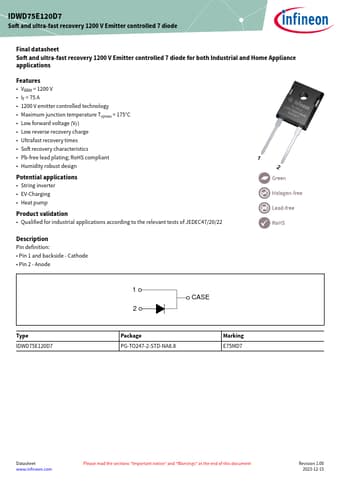

* Pin 2 - Anode 1 CASE 2 Type IDWD75E120D7 Package PG-TO247-2-STD-NA8.8 Marking E75MD7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-12-15 IDW.

IDWD75E120D7 Datasheet (1.17 MB)

IDWD75E120D7 Datasheet Preview — Preview of IDWD75E120D7 PDF

Datasheet Details

Part number:

IDWD75E120D7

Manufacturer:

Infineon ↗

File Size:

1.17 MB

Description:

1200v emitter controlled 7 diode.
IDWD75E120D7 Soft and ultra-fast recovery 1200 V Emitter controlled 7 diode Final datasheet Soft and ultra-fast recovery 1200 V Emitter controlled 7 .
