IGI60L2727B1M Datasheet - Infineon

IGI60L2727B1M-Infineon.pdf

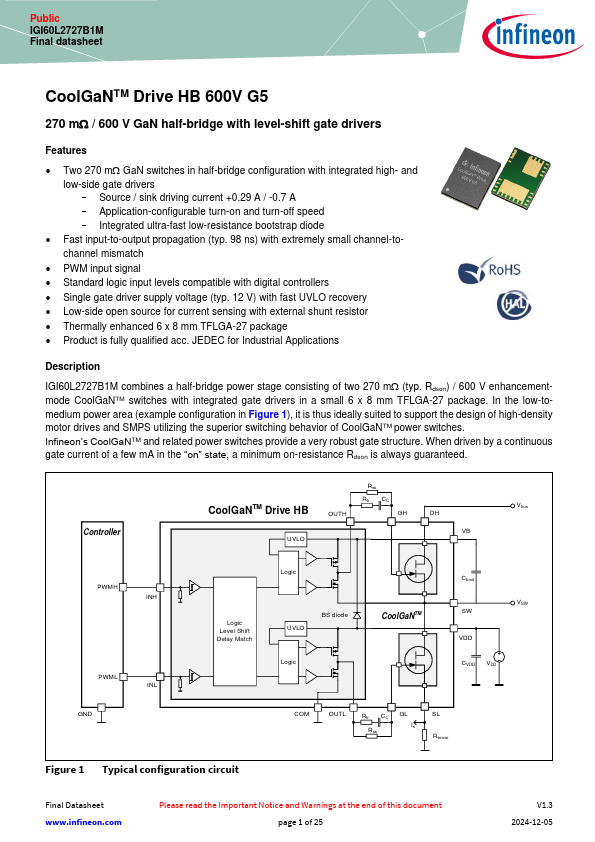

Preview of IGI60L2727B1M PDF

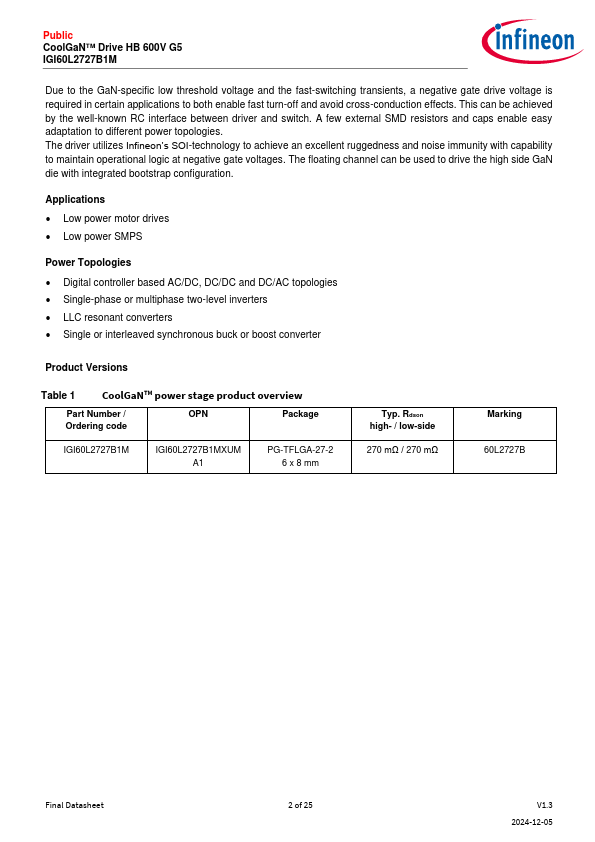

IGI60L2727B1M Datasheet Preview Page 2 IGI60L2727B1M Datasheet Preview Page 3

Datasheet Details

Part number:

IGI60L2727B1M

Manufacturer:

Infineon ↗

File Size:

902.87 KB

Description:

600v gan half-bridge.

IGI60L2727B1M, 600V GaN half-bridge

IGI60L2727B1M combines a half-bridge power stage consisting of two 270 m (typ.

Rdson) / 600 V enhancementmode CoolGaNTM switches with integrated gate drivers in a small 6 x 8 mm TFLGA-27 package.

In the low-tomedium power area (example configuration in Figure 1), it is thus ideally suited to suppor

IGI60L2727B1M Features

* Two 270 m GaN switches in half-bridge configuration with integrated high- and low-side gate drivers - Source / sink driving current +0.29 A / -0.7 A - Application-configurable turn-on and turn-off speed - Integrated ultra-fast low-resistance bootstrap diode

* Fast input-to-output
