IKWH30N67PR7 Datasheet - Infineon

IKWH30N67PR7 IGBT

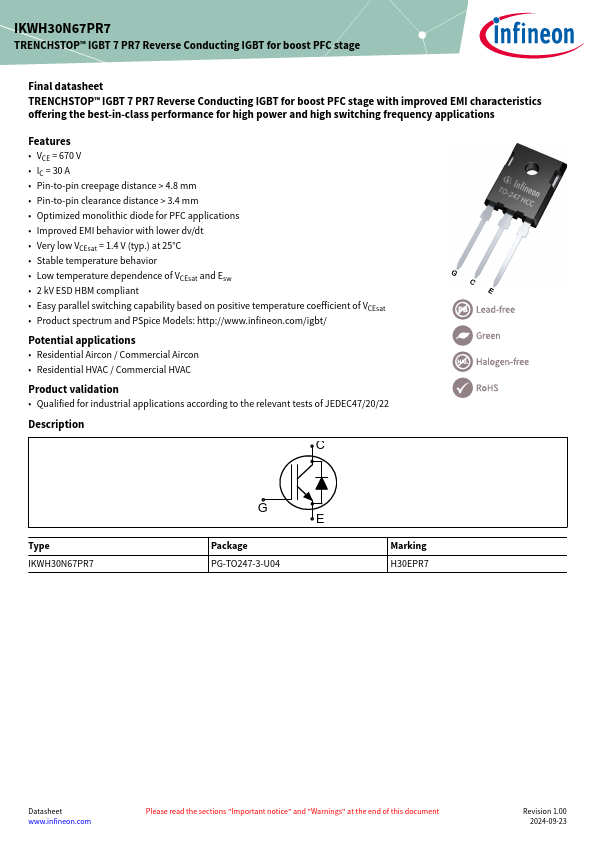

C Copyright © Infineon T Type IKWH30N67PR7 G E Package PG-TO247-3-U04 Marking H30EPR7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-09-23 IKWH30N67PR7 TRENCHSTOP™ IGBT 7 PR7 Reverse Conducting IGBT for bo.

IKWH30N67PR7 Features

* VCE = 670 V

* IC = 30 A

* Pin-to-pin creepage distance > 4.8 mm

* Pin-to-pin clearance distance > 3.4 mm

* Optimized monolithic diode for PFC applications

* Improved EMI behavior with lower dv/dt

* Very low VCEsat = 1.4 V (typ.) at 25°C

IKWH30N67PR7 Datasheet (1.35 MB)
