IMC301A High-performance motor controller

Infineon

Description

IMC301A, IMC302A IMC300 - iMOTION™ motor controller High-performance motor control IC with additional microcontroller IMC300 .

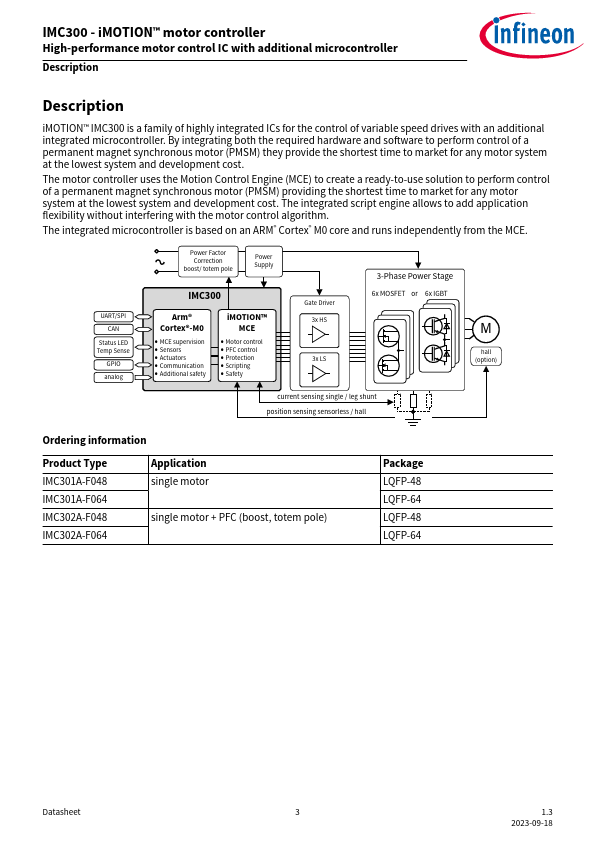

Description iMOTION™ IMC300 is a family of highly integrated ICs for the control of variable speed drives with an additional integrated microcontroll.

📥 Download Datasheet

IMC301A Datasheet Preview — Preview of IMC301A PDF

Datasheet Specifications

Part number: IMC301A
Manufacturer: Infineon ↗
File Size: 1.38 MB
Datasheet: IMC301A-Infineon.pdf
Description: High-performance motor controller

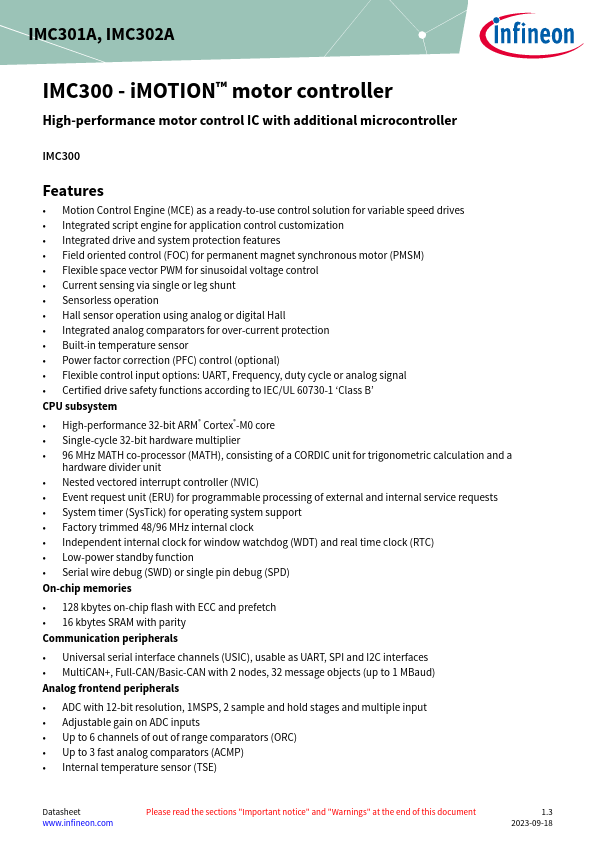

Features

* Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives

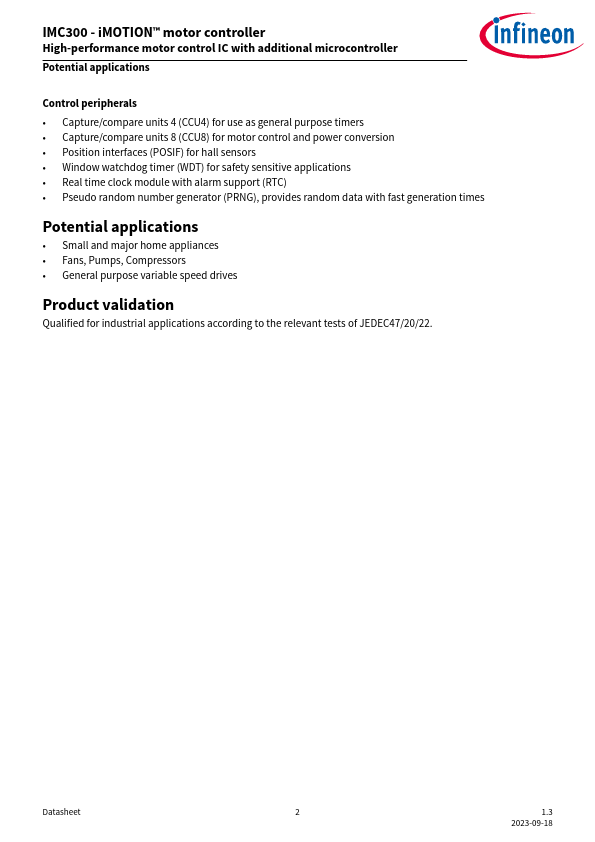

Applications

* Control peripherals
* Capture/compare units 4 (CCU4) for use as general purpose timers
* Capture/compare units 8 (CCU8) for motor control and power conversion
* Position interfaces (POSIF) for hall sensors
* Window watchdog timer (WDT) for safety sensitive application
