IMC302A-F064, IMC301A Datasheet - Infineon

IMC302A-F064 High-performance motor controller

Description iMOTION™ IMC300 is a family of highly integrated ICs for the control of variable speed drives with an additional integrated microcontroller. By integrating both the required hardware and software to perform control of a permanent magnet synchronous motor (PMSM) they provide the shortest.

IMC302A-F064 Features

* Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives

* Integrated script engine for application control customization

* Integrated drive and system protection features

* Field oriented control (FOC) for permanent magnet synchronou

IMC301A-Infineon.pdf

This datasheet PDF includes multiple part numbers: IMC302A-F064, IMC301A. Please refer to the document for exact specifications by model.

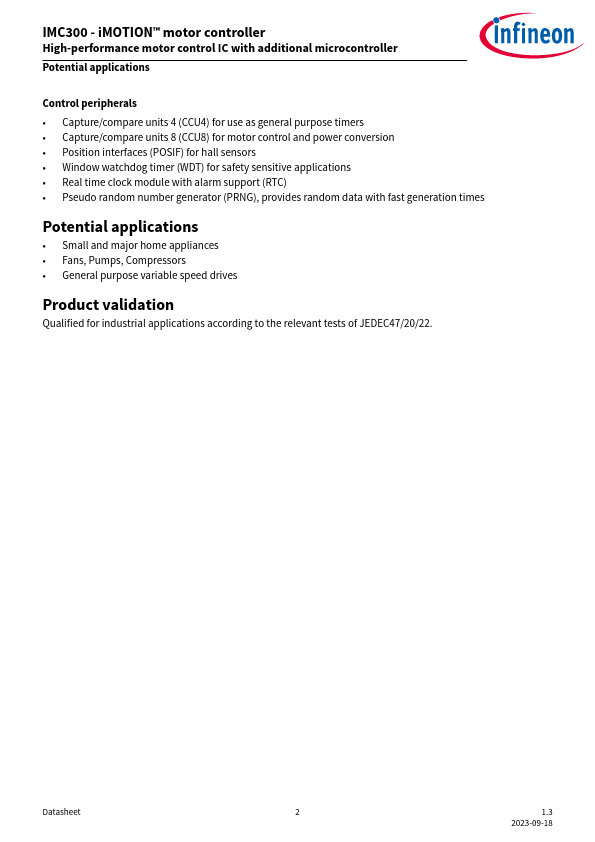

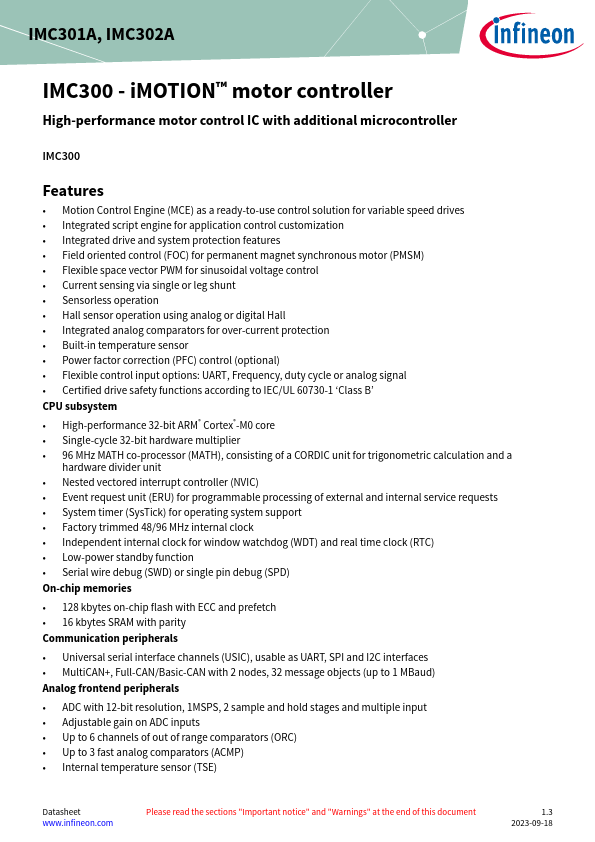

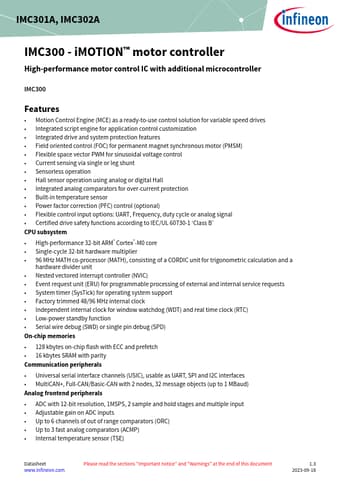

IMC302A-F064 Datasheet Preview Page 2 IMC302A-F064 Datasheet Preview Page 3

Datasheet Details

Part number:

IMC302A-F064, IMC301A

Manufacturer:

Infineon ↗

File Size:

1.38 MB

Description:

High-performance motor controller.

Note:

This datasheet PDF includes multiple part numbers: IMC302A-F064, IMC301A.
Please refer to the document for exact specifications by model.
