IMC301A-F064 Datasheet - Infineon

IMC301A-F064 High-performance motor controller

Description iMOTION™ IMC300 is a family of highly integrated ICs for the control of variable speed drives with an additional integrated microcontroller. By integrating both the required hardware and software to perform control of a permanent magnet synchronous motor (PMSM) they provide the shortest.

IMC301A-F064 Features

* Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives

* Integrated script engine for application control customization

* Integrated drive and system protection features

* Field oriented control (FOC) for permanent magnet synchronou

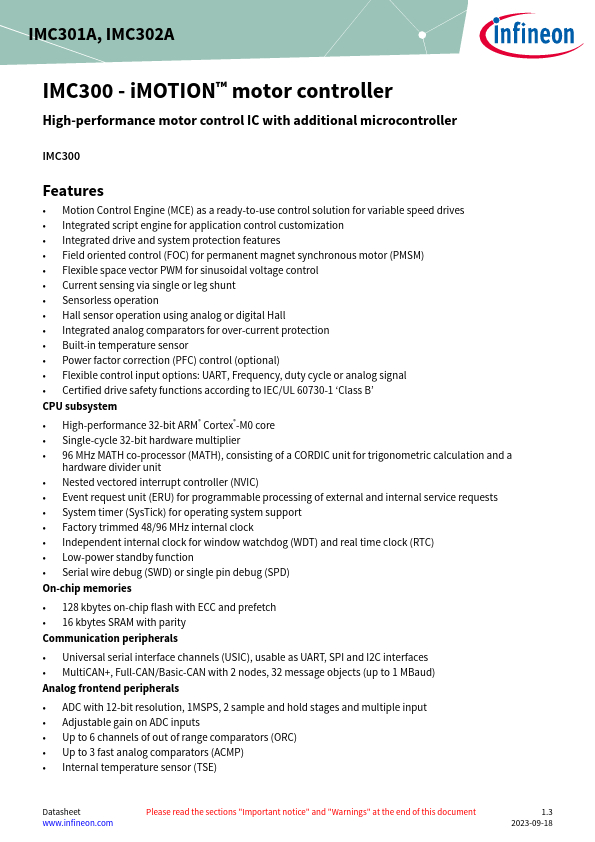

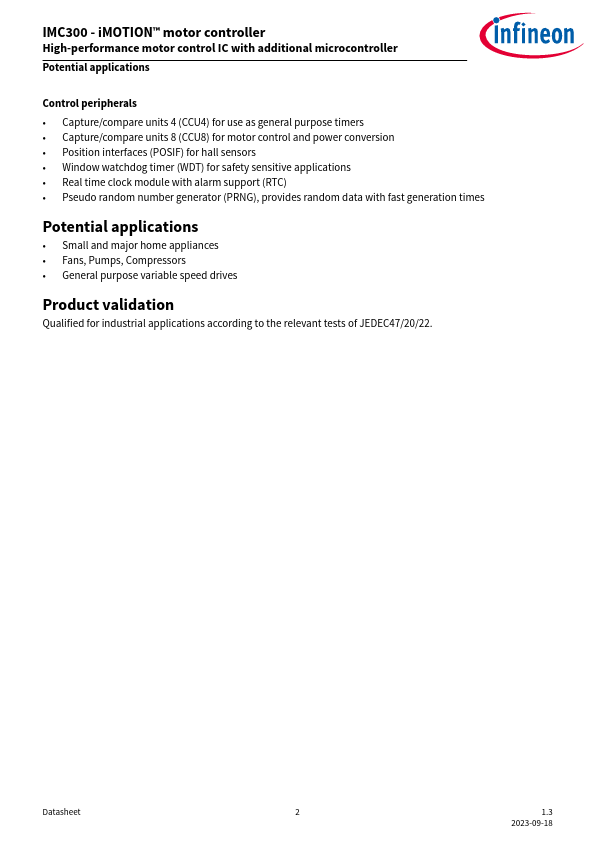

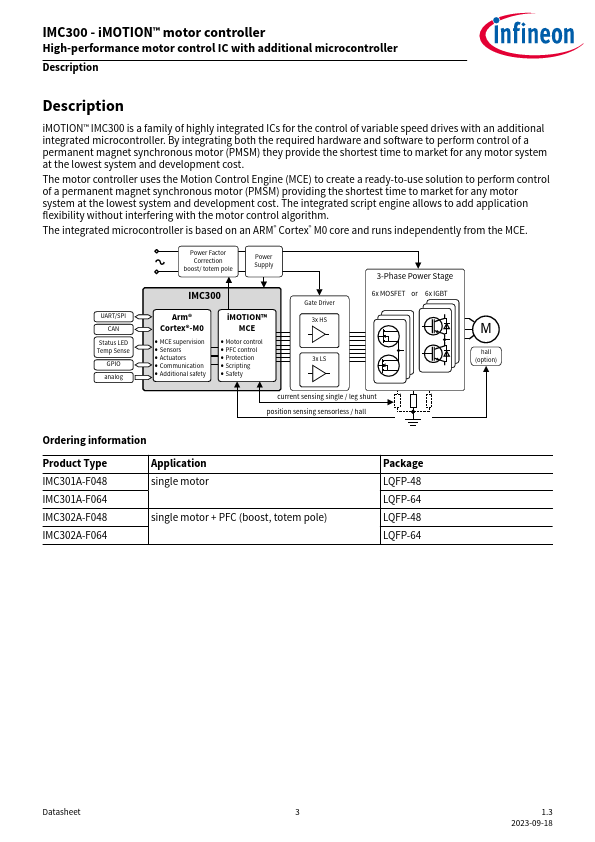

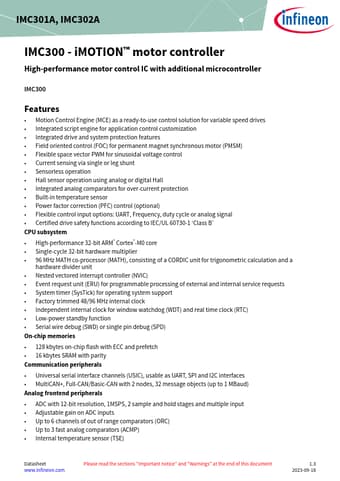

IMC301A-F064 Datasheet (1.38 MB)
