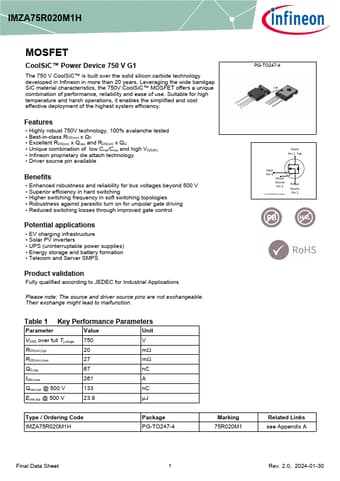

IMZA75R020M1H Datasheet Preview — Preview of IMZA75R020M1H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IMZA75R020M1H
Manufacturer: Infineon ↗
File Size: 1.49 MB
Datasheet: IMZA75R020M1H-Infineon.pdf
Description: MOSFET

IMZA75R020M1H Product details

Description

.. .. ..

Features

Highly robust 750V technology, 100% avalanche tested.
Best-in-class RDS(on) x Qfr.
Excellent RDS(on) x Qoss and RDS(on) x QG.
Unique combination of low Crss/Ciss and high VGS(th).
Infineon proprietary die attach technology.
Driver source pin available Benefits.
Enhanced robustness and reliability for bus voltages beyond 500 V.
Superior efficiency in hard switching.
Higher switching frequency in soft switching topo.
