IPB65R041CFD7 - 650V MOSFET
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

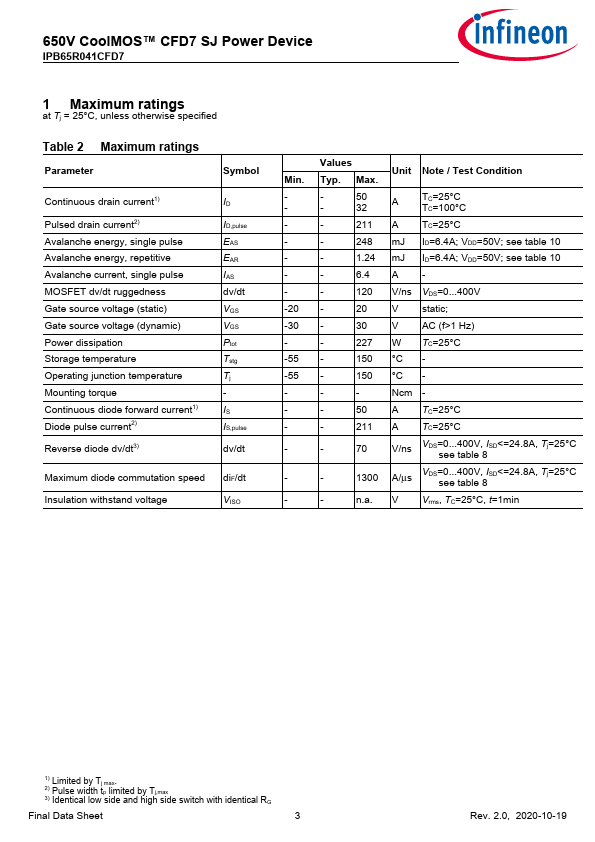

1 Maximum ratings .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

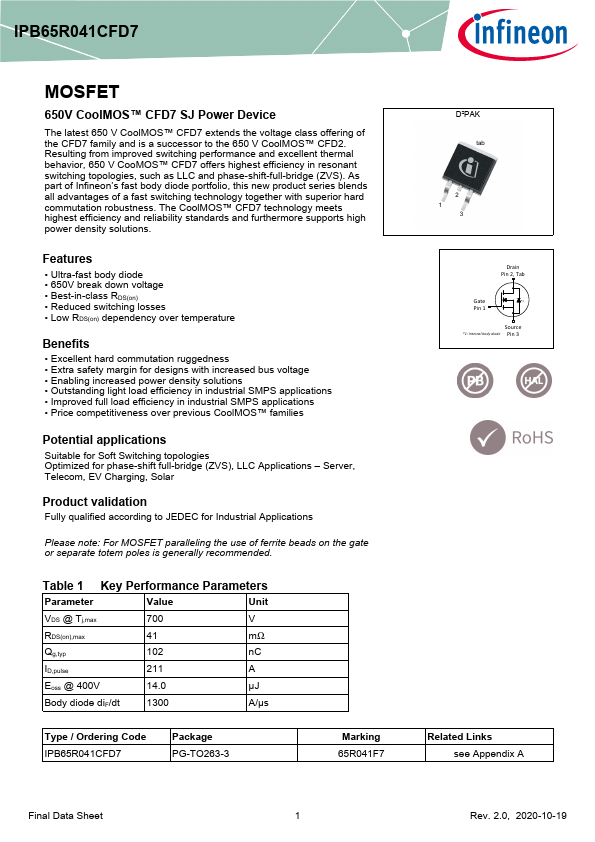

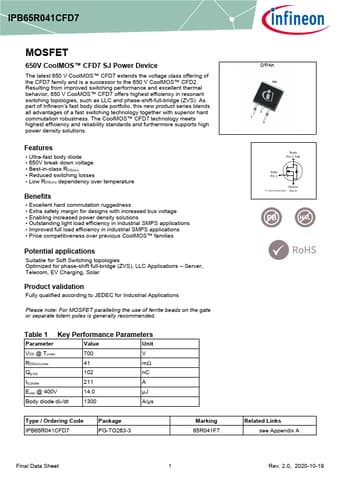

IPB65R041CFD7 MOSFET 650V CoolMOSª CFD7 SJ Power Device The latest 650 V CoolMOS™ CFD7 extends the voltage class offering of the CFD7 family and is a successor to the 650 V CoolMOS™ CFD2.
Resulting from improved switching performance and excellent thermal behavior, 650 V CooMOS™ CFD7 offers highest efficiency in resonant switching topologies, such as LLC and phase-shift-full-bridge (ZVS).
As part of Infineon’s fast body diode portfolio, this new product series blends all advantages of a fast sw
IPB65R041CFD7 Features
* Ultra-fast body diode
* 650V break down voltage
* Best-in-class RDS(on)
* Reduced switching losses
* Low RDS(on) dependency over temperature Benefits
* Excellent hard commutation ruggedness
* Extra safety margin for designs with increased bus
