IPD30N03S2L-10 - Power-Transistor

Infineon

📥 Download Datasheet

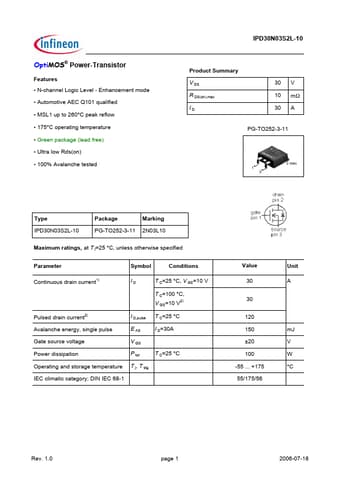

IPD30N03S2L-10 Datasheet Preview — Preview of IPD30N03S2L-10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD30N03S2L-10
Manufacturer	Infineon ↗
File Size	149.08 KB
Description	Power-Transistor
Datasheet	IPD30N03S2L-10-Infineon.pdf

IPD30N03S2L-10 Product details

Description

and charts stated herein.

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested Product Summary V DS R DS(on),max ID 30 10 30 V mΩ A PG-TO252-3-11 Type IPD30N03S2L-10 Package PG-TO252-3-11 Marking 2N03L10 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol ID.
