IPD30N03S4L-09 - Power-Transistor

Infineon

📥 Download Datasheet

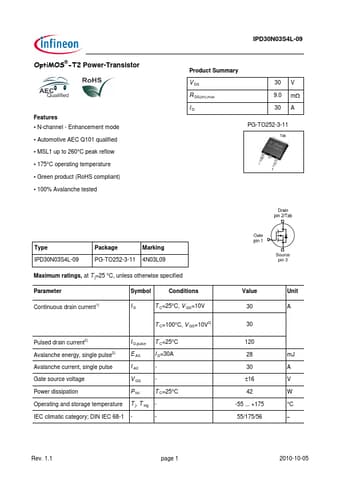

IPD30N03S4L-09 Datasheet Preview — Preview of IPD30N03S4L-09 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD30N03S4L-09
Manufacturer	Infineon ↗
File Size	171.36 KB
Description	Power-Transistor
Datasheet	IPD30N03S4L-09-Infineon.pdf

IPD30N03S4L-09 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green product (RoHS compliant).
100% Avalanche tested Type IPD30N03S4L-09 Package PG-TO252-3-11 Marking 4N03L09 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol ID Conditions T C=25°C, V GS=10V T C=100°C, V GS=10V2) Pulsed drain current2) Avalanche energy, single puls.
