IPD30N06S3-24 - Power-Transistor

Infineon

📥 Download Datasheet

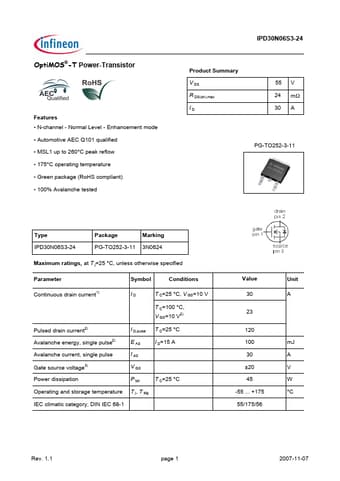

IPD30N06S3-24 Datasheet Preview — Preview of IPD30N06S3-24 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD30N06S3-24
Manufacturer	Infineon ↗
File Size	180.79 KB
Description	Power-Transistor
Datasheet	IPD30N06S3-24-Infineon.pdf

IPD30N06S3-24 Product details

Features

N-channel - Normal Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested PG-TO252-3-11 Type IPD30N06S3-24 Package PG-TO252-3-11 Marking 3N0624 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol ID Conditions T C=25 °C, V GS=10 V T C=100 °C, V GS=10 V2) Pulsed drain current2.
