IPD30N06S4L-23 - Power-Transistor

Infineon

📥 Download Datasheet

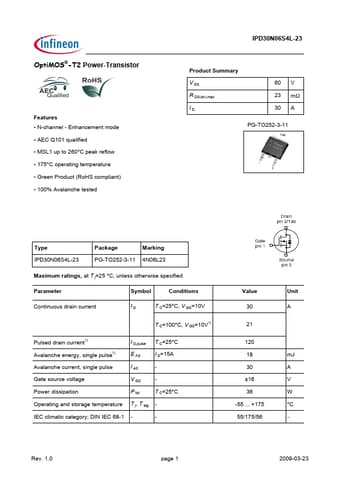

IPD30N06S4L-23 Datasheet Preview — Preview of IPD30N06S4L-23 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD30N06S4L-23
Manufacturer	Infineon ↗
File Size	159.82 KB
Description	Power-Transistor
Datasheet	IPD30N06S4L-23-Infineon.pdf

IPD30N06S4L-23 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested Type IPD30N06S4L-23 Package PG-TO252-3-11 Marking 4N06L23 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current Symbol ID Conditions T C=25°C, V GS=10V T C=100°C, V GS=10V1) Pulsed drain current1) Avalanche energy, single pulse1) Avalanche.
