IPD90P03P4L-04 - Power-Transistor

Infineon

📥 Download Datasheet

IPD90P03P4L-04 Datasheet Preview — Preview of IPD90P03P4L-04 PDF

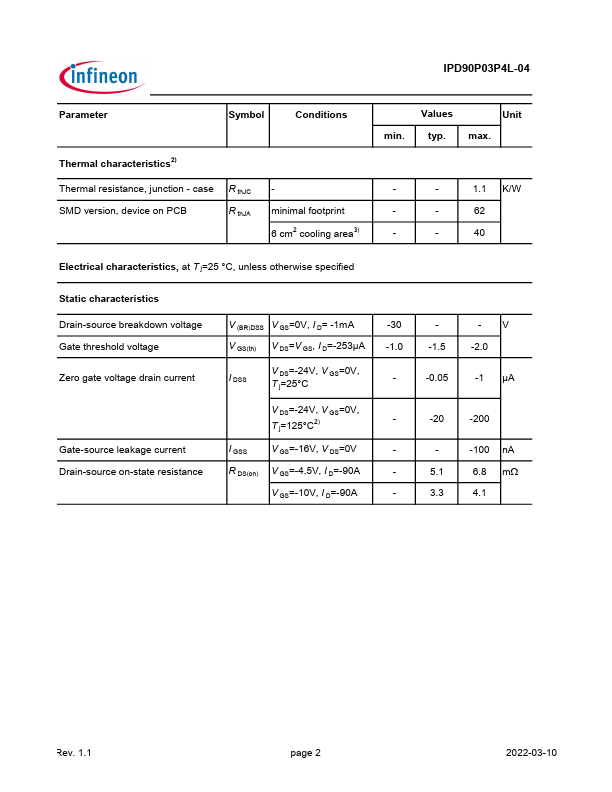

datasheet Preview Page 2

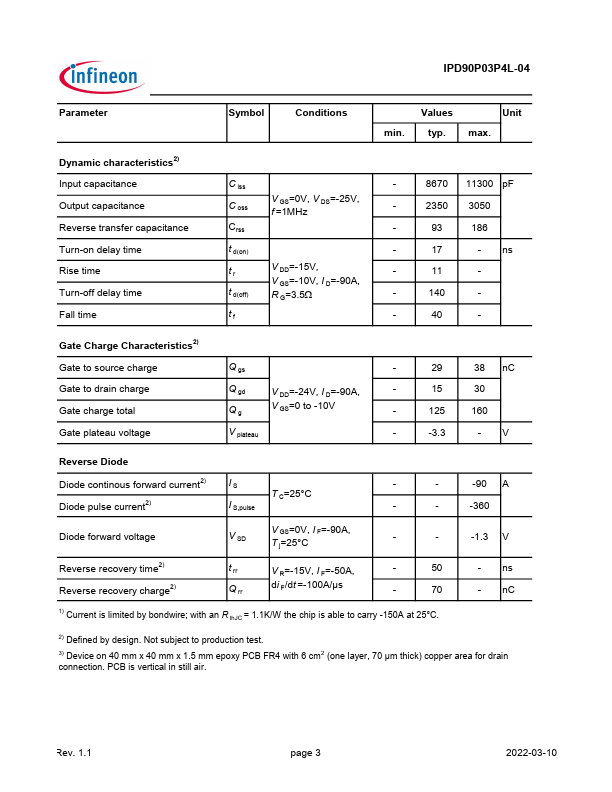

datasheet Preview Page 3

Datasheet Details

Part number	IPD90P03P4L-04
Manufacturer	Infineon ↗
File Size	655.43 KB
Description	Power-Transistor
Datasheet	IPD90P03P4L-04-Infineon.pdf

IPD90P03P4L-04 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
RoHS compliant.
100% Avalanche tested.
Intended for reverse battery protection IPD90P03P4L-04 Product Summary VDS RDS(on) ID -30 V 4.1 mW -90 A PG-TO252-3-11 Type IPD90P03P4L-04 Package Marking PG-TO252-3-11 4P03L04 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Con.
