IPP069N20NM6 - MOSFET

Infineon

📥 Download Datasheet

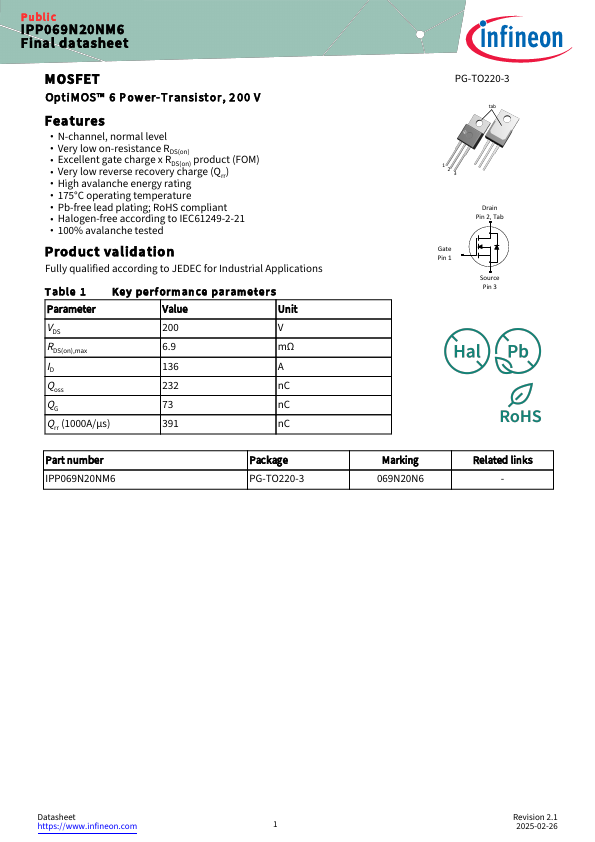

IPP069N20NM6 Datasheet Preview — Preview of IPP069N20NM6 PDF

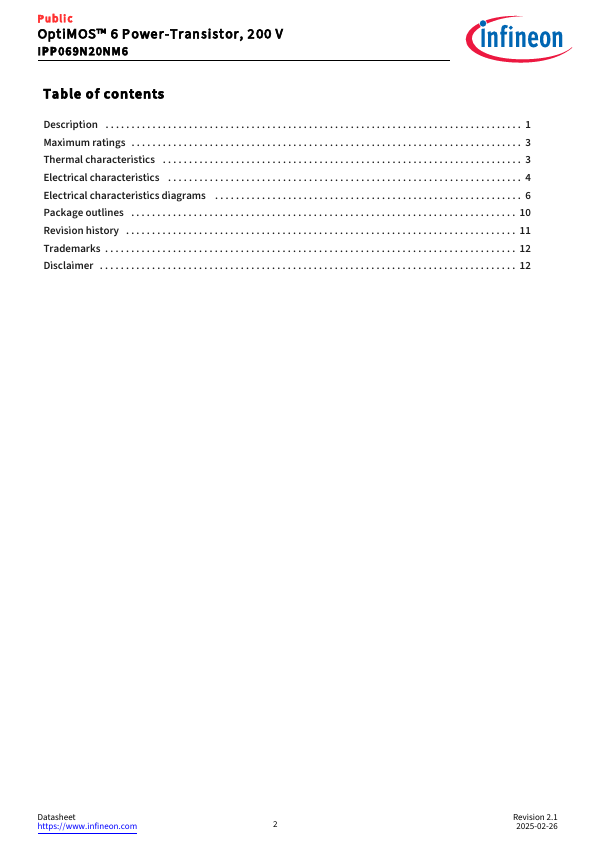

datasheet Preview Page 2

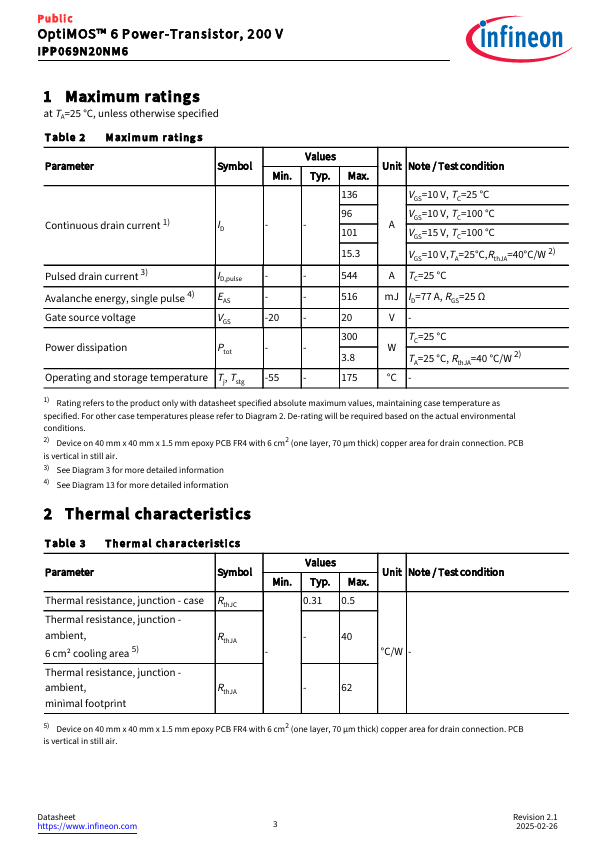

datasheet Preview Page 3

Datasheet Details

Part number	IPP069N20NM6
Manufacturer	Infineon ↗
File Size	895.62 KB
Description	MOSFET
Datasheet	IPP069N20NM6-Infineon.pdf

IPP069N20NM6 Product details

Description

1 Maximum ratings 3 Thermal characteristics .

Features

N‑channel, normal level.
Very low on‑resistance RDS(on).
Excellent gate charge x RDS(on) product (FOM).
Very low reverse recovery charge (Qrr).
High avalanche energy rating.
175°C operating temperature.
Pb‑free lead plating; RoHS compliant.
Halogen‑free according to IEC61249‑2‑21.
100% avalanche tested Product validation Fully qualified according to JEDEC for Industrial.
