IPT044N15N5 150V MOSFET

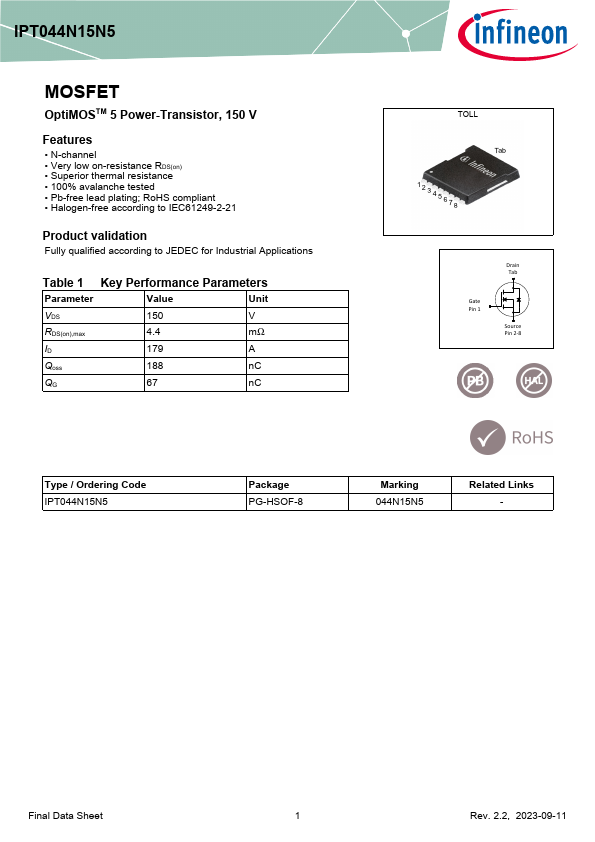

📥 Download Datasheet  Datasheet Preview Page 1

Description

IPT044N15N5 MOSFET OptiMOSTM 5 Power-Transistor, 150 V .

📥 Download Datasheet

Preview of IPT044N15N5 PDF

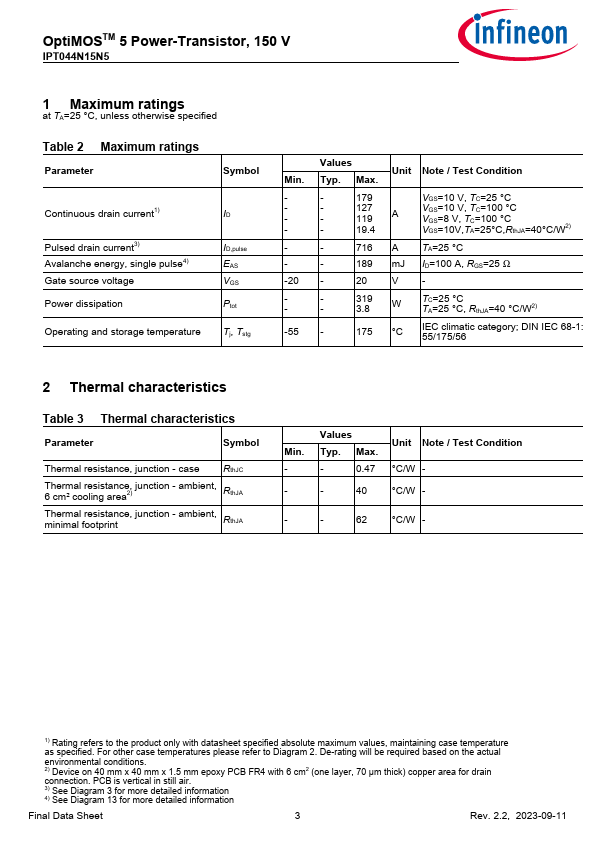

datasheet Preview Page 2 datasheet Preview Page 3

Features

* N-channel
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for Industrial App

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 150 V RDS(on),max 4.4 mΩ ID 179 A Qoss 188 nC QG 67 nC TOLL Tab 12345 678 Drain Tab Gate Pin 1 Source Pin 2-8 Type / Ordering Code IPT044N15N5 Package PG-HSOF-8 Marking 044N15N5 Related Links - Final Data She
