IPTG210N25NM3FD, 250V MOSFET

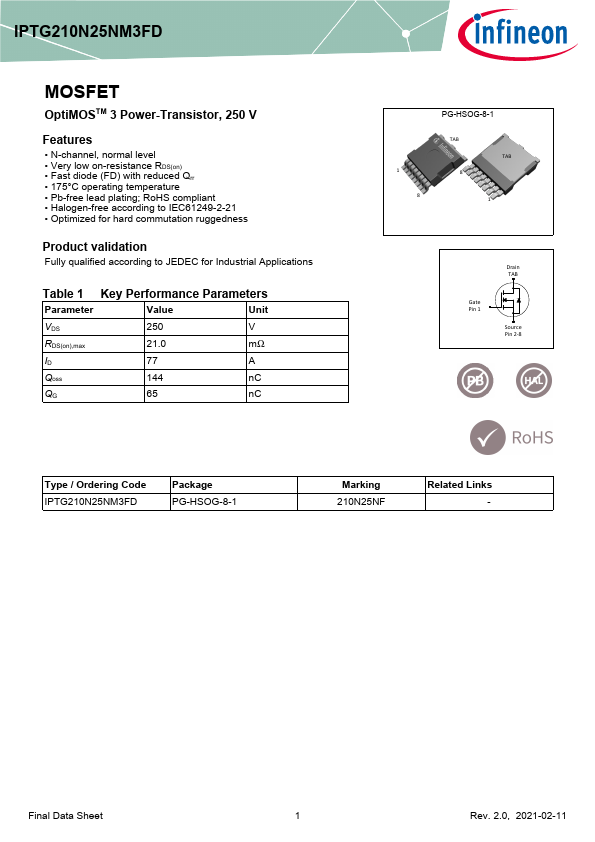

IPTG210N25NM3FD MOSFET OptiMOSTM 3 Power-Transistor, 250 V .

datasheet Preview Page 1 from Datasheet4u.com

IPTG210N25NM3FD-Infineon.pdf

IPTG210N25NM3FD Datasheet Preview — Preview of IPTG210N25NM3FD PDF

Datasheet Details

Part number:

IPTG210N25NM3FD

Manufacturer:

Infineon ↗

File Size:

1.32 MB

Description:

250V MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Fast diode (FD) with reduced Qrr
* 175°C operating temperature
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Optimized for hard commutation rugged

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 250 V RDS(on),max 21.0 mΩ ID 77 A Qoss 144 nC QG 65 nC 1 8 PG-HSOG-8-1 TAB TAB 8 1 Drain TAB Gate Pin 1 Source Pin 2-8 Type / Ordering Code IPTG210N25NM3FD Package PG-HSOG-8-1 Marking 210N25NF Related Links -
