IQD005N04NM6CG Datasheet - Infineon

IQD005N04NM6CG, MOSFET

IQD005N04NM6CG MOSFET OptiMOSTM 6 Power-Transistor, 40 V .

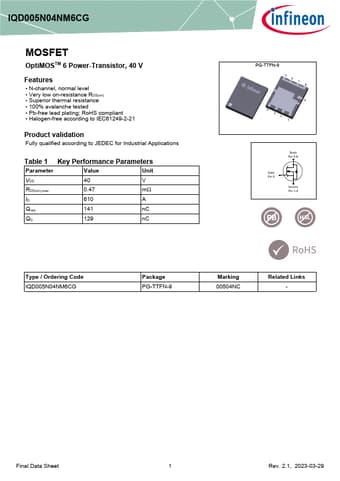

datasheet Preview Page 1 from Datasheet4u.com

IQD005N04NM6CG-Infineon.pdf

IQD005N04NM6CG Datasheet Preview — Preview of IQD005N04NM6CG PDF

Datasheet Details

Part number:

IQD005N04NM6CG

Manufacturer:

Infineon ↗

File Size:

1.11 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 0.47 mΩ ID 610 A Qoss 141 nC QG 129 nC PG-TTFN-9 5 6 7 8 9 4 3 2 1 Drain Pin 5-8 Gate Pin 9 Source Pin 1-4 Type / Ordering Code IQD005N04NM6CG Package PG-TTFN-9 Marking 00504NC Related Links - F
