IQD009N06NM5 Datasheet, Mosfet, Infineon

IQD009N06NM5 Features

  • Mosfet
  • N-channel, normal level
  • Very low on-resistance RDS(on)
  • Superior thermal resistance
  • 100% avalanche tested
  • Pb-free lead plating; RoHS com

PDF File Details

Part number:

IQD009N06NM5

Manufacturer:

Infineon ↗

File Size:

1.19MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

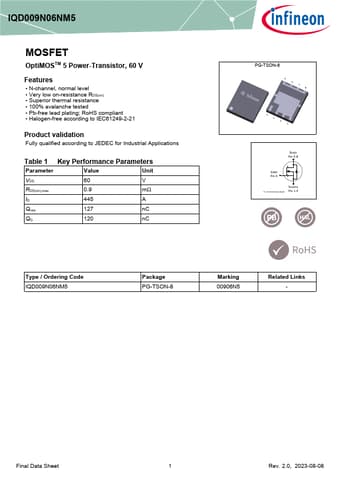

Datasheet Preview: IQD009N06NM5 📥 Download PDF (1.19MB)
Page 2 of IQD009N06NM5 Page 3 of IQD009N06NM5

IQD009N06NM5 Application

  • Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 0.9 mΩ ID 445 A Qoss 127 nC QG 120
