IQD016N08NM5SC, 80V MOSFET

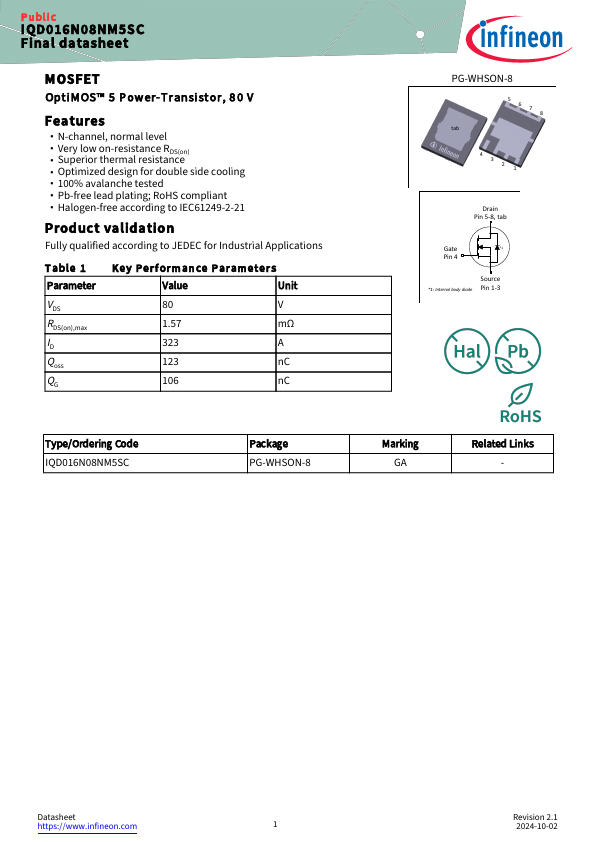

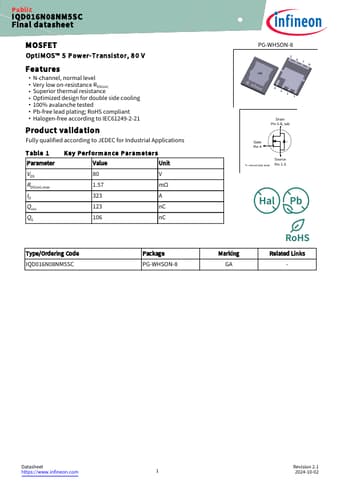

Public IQD016N08NM5SC Final datasheet MOSFET OptiMOS™ 5 Power‑Transistor, 80 V .
1 Maxi.

datasheet Preview Page 1 from Datasheet4u.com

IQD016N08NM5SC-Infineon.pdf

IQD016N08NM5SC Datasheet Preview — Preview of IQD016N08NM5SC PDF

Datasheet Details

Part number:

IQD016N08NM5SC

Manufacturer:

Infineon ↗

File Size:

0.98 MB

Description:

80V MOSFET

Features

* N‑channel, normal level
* Very low on‑resistance RDS(on)
* Superior thermal resistance
* Optimized design for double side cooling
* 100% avalanche tested
* Pb‑free lead plating; RoHS compliant
* Halogen‑free according to IEC61249‑2‑21 Product

Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG Key Performance Parameters Value Unit 80 V 1.57 mΩ 323 A 123 nC 106 nC Type/Ordering Code IQD016N08NM5SC Package PG‑WHSON‑8 PG‑WHSON‑8 5 67 8 tab 4 3 21 Drain Pin 5-8, tab Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3
