IQD016N08NM5CG Datasheet - Infineon

IQD016N08NM5CG, MOSFET

IQD016N08NM5CG MOSFET OptiMOSTM 5 Power-Transistor, 80 V .

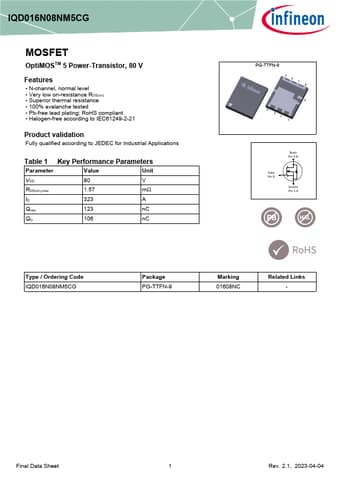

datasheet Preview Page 1 from Datasheet4u.com

IQD016N08NM5CG-Infineon.pdf

IQD016N08NM5CG Datasheet Preview — Preview of IQD016N08NM5CG PDF

Datasheet Details

Part number:

IQD016N08NM5CG

Manufacturer:

Infineon ↗

File Size:

1.09 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 1.57 mΩ ID 323 A Qoss 123 nC QG 106 nC PG-TTFN-9 5 6 7 8 9 4 3 2 1 Drain Pin 5-8 Gate Pin 9 Source Pin 1-4 Type / Ordering Code IQD016N08NM5CG Package PG-TTFN-9 Marking 01608NC Related Links - F
