IQD009N06NM5SC Datasheet - Infineon

IQD009N06NM5SC, MOSFET

Public IQD009N06NM5SC Final datasheet MOSFET OptiMOS™ 5 Power‑Transistor, 60 V .
1 Maxi.

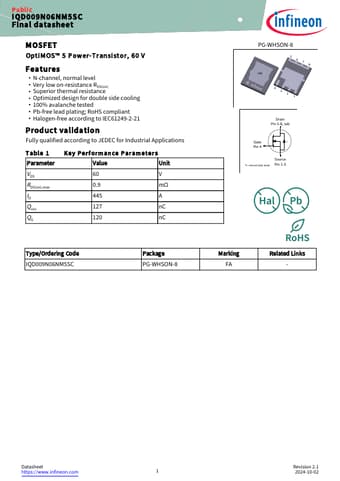

datasheet Preview Page 1 from Datasheet4u.com

IQD009N06NM5SC-Infineon.pdf

IQD009N06NM5SC Datasheet Preview — Preview of IQD009N06NM5SC PDF

Datasheet Details

Part number:

IQD009N06NM5SC

Manufacturer:

Infineon ↗

File Size:

0.98 MB

Description:

MOSFET

Features

* N‑channel, normal level
* Very low on‑resistance RDS(on)
* Superior thermal resistance
* Optimized design for double side cooling
* 100% avalanche tested
* Pb‑free lead plating; RoHS compliant
* Halogen‑free according to IEC61249‑2‑21 Product

Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG Key Performance Parameters Value Unit 60 V 0.9 mΩ 445 A 127 nC 120 nC Type/Ordering Code IQD009N06NM5SC Package PG‑WHSON‑8 PG‑WHSON‑8 5 67 8 tab 4 3 21 Drain Pin 5-8, tab Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3
